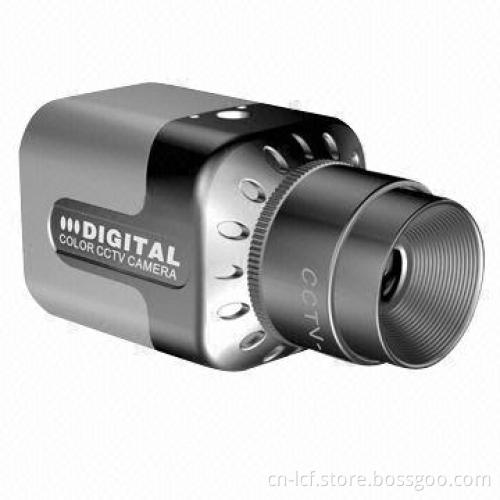

Mini Box Camera, 1/3-inch Sony CCD, Various Colors are Available

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T in Advance, Western Union or PayPal

Product Description

Image sensor: 1/3-inch Sony Super HAD CCD box camera (various color: red, yellow, green and gray)

Number of pixels:

Horizontal resolution: 650TVL

Illumination: 0.5 lux C/CS (not include lens)

Mirror: manual adjustable

S/N ratio: more than 48dB

Scanning system:

Scanning frequency:

Sync system: internal synchronization

Gamma system: γ = 0.45

AGC: adjustable

BLC: adjustable

Video output: 1Vp-p 75Ω, negative

Power consumption: DC 12V, less than 100mA

Operating temperature: -10 to 50°C, 95% RH (maximum)

Store temperature: -20 to 60, 95% RH (maximum)

Size:34x34x48mm

PAL: 976 (H) x 582 (V), 570K

NTSC: 976 (H) x 494 (V), 480K

PAL: 2:1 interlace

Horizontal:

Vertical:

PAL: 15.625KHz

NTSC: 15.734KHz

PAL: 50Hz

NTSC: 59.94Hz
