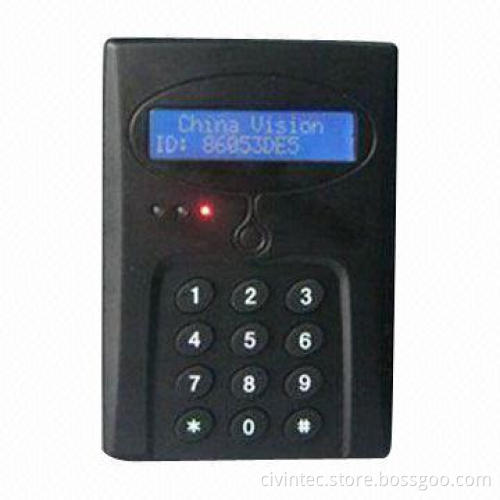

RFID EM 125kHz Keypad Access Control/Time Attendance System with LCD and 2,000 to 5,000 Users

Get Latest Price

Payment Type:: T/T in Advance, PayPal or Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T in Advance, PayPal or Western Union

Product Description

Overview:

High-level access control terminal with time attendance function with display
EM125kHz technology
Terminal features with standalone mode, network mode via RS485 or built-in TCP/IP 2,000 to 5,000 cardholders can be registered, events reach up to 10,000
Work modes includes: card only, pin only, or card + pin with backlight keypad
With 15 changeable time group (each time group has 8-day including 1 holiday and each day has 5 time schedule), can meet different regulatory requirements
Blue LCD makes it an attractive solution for indoor use
Also features an external reader for anti-passing back (Wiegand port) for high security

Advantages:

Standalone mode and network mode
APB function, external reader for anti-passing (Wiegand port)
Users: 2,000, expandable up to 5,000
10,000 event records
All I/Os and operating times user keypad programmable
Card, card + pin, pin mode
2 inputs and 2 outputs
Changeable 15-time group, each time group has 8 days including 1 holiday and each day has 5-time schedule
Housing sabotage alarm
Dual function for access control and time attendance
Watchdog timer and power on reset
Built-in TCP/IP interface
PC housing material

Relative products:

Can register a few number cards on stand-alone application and professional desktop reader EL200-U is required for card batch issuing on stand-alone or network application
Full range of cards and tags are available to meet complete solution

High-level access control terminal with time attendance function with display

EM125kHz technology

Terminal features with standalone mode, network mode via RS485 or built-in TCP/IP 2,000 to 5,000 cardholders can be registered, events reach up to 10,000

Work modes includes: card only, pin only, or card + pin with backlight keypad

With 15 changeable time group (each time group has 8-day including 1 holiday and each day has 5 time schedule), can meet different regulatory requirements

Blue LCD makes it an attractive solution for indoor use

Also features an external reader for anti-passing back (Wiegand port) for high security

Standalone mode and network mode

APB function, external reader for anti-passing (Wiegand port)

Users: 2,000, expandable up to 5,000

10,000 event records

All I/Os and operating times user keypad programmable

Card, card + pin, pin mode

2 inputs and 2 outputs

Changeable 15-time group, each time group has 8 days including 1 holiday and each day has 5-time schedule

Housing sabotage alarm

Dual function for access control and time attendance

Watchdog timer and power on reset

Built-in TCP/IP interface

PC housing material

Can register a few number cards on stand-alone application and professional desktop reader EL200-U is required for card batch issuing on stand-alone or network application

Full range of cards and tags are available to meet complete solution
