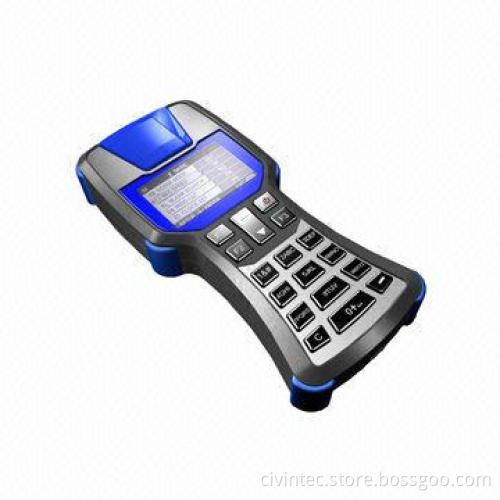

Smart Card Reader with High-performance R/W Handheld Reader, 2MB Flash Memory and RS232 Interface

Get Latest Price

Payment Type:: T/T in Advance

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T in Advance

Product Description

Specifications:

High-performance advanced, battery powered handheld contact/contactless reading/writing smart card reader
Features a 32-bit low-power microprocessor with 2Mbyte (expandable up to 8MB) flash memory and 512Kbyte SRAM for program and data storage
Standard human interface consists of a LCD display and 18 keys keypad
Several versions are available to supports different contactless smart card technology: ISO15693, ISO14443A MIFARE, ISO14443A/B, and ISO7816
Can be used in harsh environment thanks to its special casing design (IP65)
Power down function enables it to be an ideal platform for handheld application
Can also be supplied power by USB port by connecting with PC
Easy-to-use RS232 or USB interface
Comes with pre-installed BIOS to manage all the low-level works
User could only concentrate on the high-level application development
With the robust API function library and easy to use IDE (C and ASM language) tools, the user can easily and rapidly develop their own handheld applications with CV70X0(C)-X
Data transmission via GPRS and GSM is available as option by connecting with an external device

Advantages:

High-performance
32-bit low-power microprocessor with 2Mbyte (up to 8MB) flash memory and 512Kbyte static RAM for program and data storage
Suitable for harsh environment
Flexible interface: RS232 or USB (GSM/GPRS as option)
External printer could be connected by COM interface
Lower power consume: power down function
High-capacity Li rechargeable battery and excellent power management and also can be supplied by USB port

High-performance advanced, battery powered handheld contact/contactless reading/writing smart card reader

Features a 32-bit low-power microprocessor with 2Mbyte (expandable up to 8MB) flash memory and 512Kbyte SRAM for program and data storage

Standard human interface consists of a LCD display and 18 keys keypad

Several versions are available to supports different contactless smart card technology: ISO15693, ISO14443A MIFARE, ISO14443A/B, and ISO7816

Can be used in harsh environment thanks to its special casing design (IP65)

Power down function enables it to be an ideal platform for handheld application

Can also be supplied power by USB port by connecting with PC

Easy-to-use RS232 or USB interface

Comes with pre-installed BIOS to manage all the low-level works

User could only concentrate on the high-level application development

With the robust API function library and easy to use IDE (C and ASM language) tools, the user can easily and rapidly develop their own handheld applications with CV70X0(C)-X

Data transmission via GPRS and GSM is available as option by connecting with an external device

High-performance

32-bit low-power microprocessor with 2Mbyte (up to 8MB) flash memory and 512Kbyte static RAM for program and data storage

Suitable for harsh environment

Flexible interface: RS232 or USB (GSM/GPRS as option)

External printer could be connected by COM interface

Lower power consume: power down function

High-capacity Li rechargeable battery and excellent power management and also can be supplied by USB port
