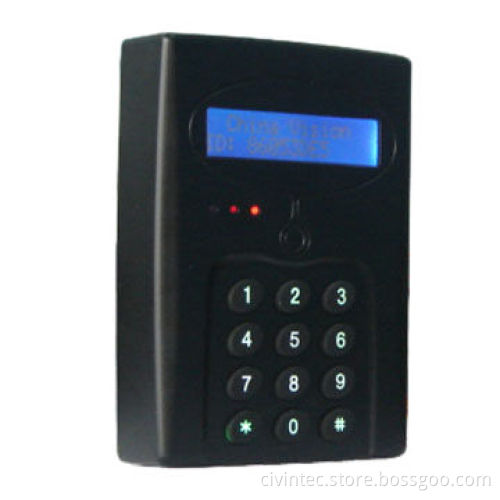

Door Access Control System with Built-in TCP/IP Interface and 9,600bps Communication

Door Access Control System with Built-in TCP/IP Interface and 9,600bps Communication

Get Latest Price

Payment Type:: Telegraphic Transfer in Advance (Advance TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

High-level access control

With strong time recording function

With display

Contactless reading Mifare secure sector or read only (UID)device

Features standalone or network modes by RS485 or built-in TCP/IP

2,000 to 5,000 card users can be registered, events reach up to10,000

Work modes include card only, PIN only and card + PIN with backlight keypad

Time schedule and holiday table can be set for high security

System guarantees that record does not lose

External reader for anti-passing back (Wiegand port) is also available

Blue LCD makes solution for indoor use

Various kinds of software platform are also available by China-vision application software or SDK with COM (component object model) interface for customers' further development in short time

Standalone and network modes: up to 98 units

Changeable 16 time groups (each time group has 8 day including one holiday and each day has 5 time schedules)

Built-in TCP/IP interface

APB function and external reader for anti-passing (Wiegand port)

All I/Os and operating times user keypad programmable

Two input and two output

Housing sabotage alarm

Dual function for access control and time attendance

Watchdog timer and power on reset

PC housing material

Blue LCD display for easy and comfortable use, waterproof LCD(optional)

Power supply: 9V DC (9 to 24V), ≤200mA

Card holder: 2,000, expandable to 5,000

Network: via RS485, up to 98 units

Interfaces: RS232 and RS485

Communication: 9,600bps as default

APB: external Wiegand 34 reader

Operating modes: card/card and PIN/PIN
