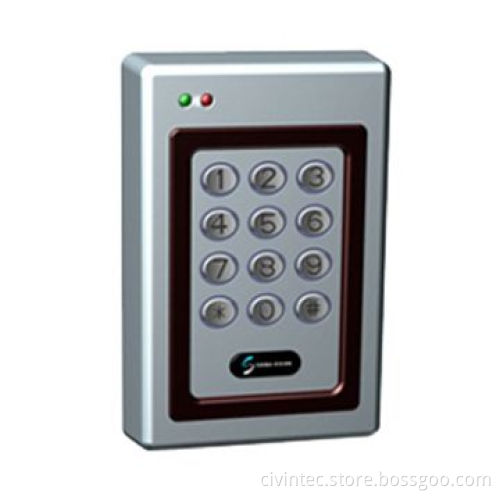

Vandal-proof RFID Powerful Access Controller with Time Attendance System and Keypad for Outdoor Use

Get Latest Price

Payment Type:: T/T in Advance, PayPal or Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T in Advance, PayPal or Western Union

Product Description

Overview:

CV9601T(S)-X-1F is high level dual access control and time attendance system terminal
Contactless reading Mifare Secure Sector or read only (UID) device that supports ISO14443A Mifare
Terminal features with standalone mode, network mode via RS485 or built-in TCP/IP
It can automatically switch work mode between card only, card or PIN, card + PIN
Furthermore, the terminal enables to set parameter of valid time for user
With 15 changeable time group (each time group has 8 days including 1 holiday and each day has 5 time schedule), CV9601T(S)-X-1F can meet various regulatory requirements
Terminal features toggle function, so the door could be opened for a specific period of time and closed by presenting card, its suitable for frequent access place such as hotels, classrooms, hospitals and more
It also features an external reader for anti-passing back (Wiegand port) for high security

Advantages:

Standalone mode and network mode
Automatic to switch work mode: card, card or PIN, card + PIN (password length can be set 2 to 6 digits)
Various number of cardholder and events is selectable: (512;10,000), (2000; 100,000) and (5000; 100,000)
Enable to set parameter of valid time for users
Changeable 15 time group, each time group has 8 days including 1 holiday and each day has 5 time schedule
Guarantee that the record does not lose
Vandal-resistant for harsh environment
Adjust controller time
4-bit burst input format
External reader for anti-passing (Wiegand port)
Automatic to identify and receive signal input from Wiegand 26/34 interface
All I/Os and operating times user keypad programmable
Toggle mode of door opening for a specific period of time, suitable for frequently in/out place
Housing sabotage alarm and self diagnostics
Watch-dog timer and power on reset
Duress alarm in case of emergency

CV9601T(S)-X-1F is high level dual access control and time attendance system terminal

Contactless reading Mifare Secure Sector or read only (UID) device that supports ISO14443A Mifare

Terminal features with standalone mode, network mode via RS485 or built-in TCP/IP

It can automatically switch work mode between card only, card or PIN, card + PIN

Furthermore, the terminal enables to set parameter of valid time for user

With 15 changeable time group (each time group has 8 days including 1 holiday and each day has 5 time schedule), CV9601T(S)-X-1F can meet various regulatory requirements

Terminal features toggle function, so the door could be opened for a specific period of time and closed by presenting card, its suitable for frequent access place such as hotels, classrooms, hospitals and more

It also features an external reader for anti-passing back (Wiegand port) for high security

Standalone mode and network mode

Automatic to switch work mode: card, card or PIN, card + PIN (password length can be set 2 to 6 digits)

Various number of cardholder and events is selectable: (512;10,000), (2000; 100,000) and (5000; 100,000)

Enable to set parameter of valid time for users

Changeable 15 time group, each time group has 8 days including 1 holiday and each day has 5 time schedule

Guarantee that the record does not lose

Vandal-resistant for harsh environment

Adjust controller time

4-bit burst input format

External reader for anti-passing (Wiegand port)

Automatic to identify and receive signal input from Wiegand 26/34 interface

All I/Os and operating times user keypad programmable

Toggle mode of door opening for a specific period of time, suitable for frequently in/out place

Housing sabotage alarm and self diagnostics

Watch-dog timer and power on reset

Duress alarm in case of emergency
