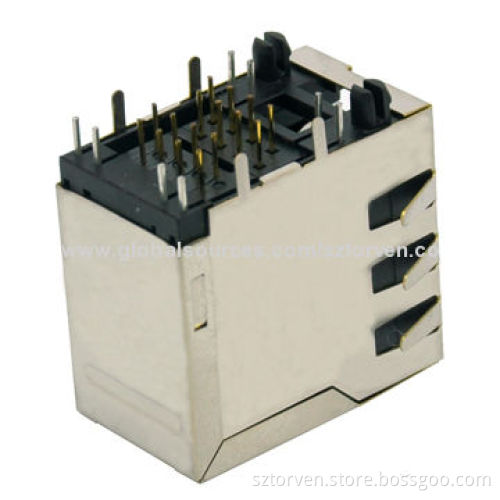

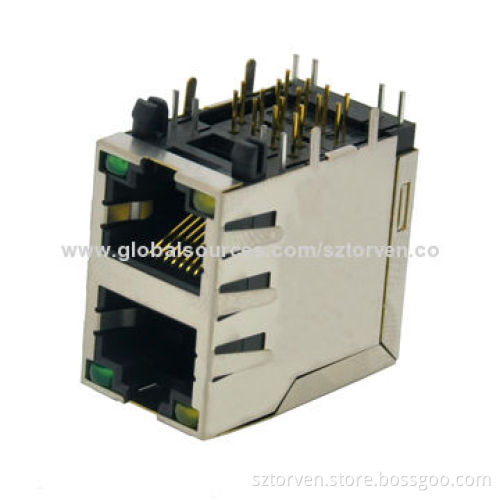

RJ Side Entry 2x1 LED Jack, 0.23 Thickness Brass with Nickel Plating, Available in 2x1-2x8 Pole

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T in Advance

Product Description

Housing material: glass filled polyester ULl 94V-0 PBT/nylon

Housing colors: black or others

Contact material: phosphor bronze φ0.46mm

Plating: gold plating over nickel

Gold plating thickness 1.5/3/6/15/30/50µ”

Shield: 0.23 thickness brass with nickel plating

LED: optional

Specifications:

Electrical:
- Voltage rating: 125V AC RMS
- Current rating: 1.5A
- Contact resistance: 30mΩ (maximum)
- Insulator resistance: 500MΩ (minimum) at 500V DC
- Dielectric withstanding resistance: 1,000V AC RMS, 50Hz minute
Mechanical:
- Durability: 750 cycles (minimum)
- PCB retention pre-solder: 1LB (minimum)
Environmental:
- Storage: -40-80°C
- Operating: -40-80°C
