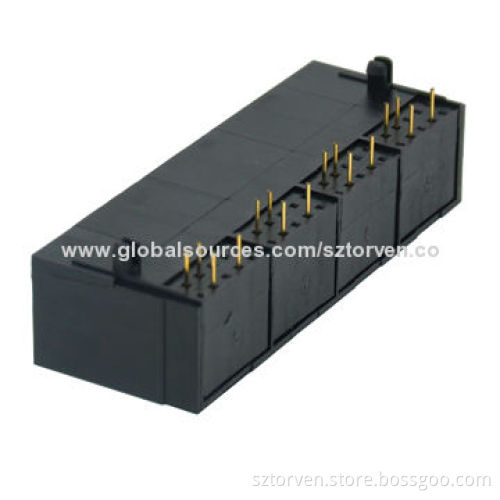

RJ45 Connector, Side Entry Modular Jack 1 x 4, Jack Available in 1 x 1-1 x 8-Pole, 1.5A Current
  • RJ45 Connector, Side Entry Modular Jack 1 x 4, Jack Available in 1 x 1-1 x 8-Pole, 1.5A Current
  • RJ45 Connector, Side Entry Modular Jack 1 x 4, Jack Available in 1 x 1-1 x 8-Pole, 1.5A Current
  • RJ45 Connector, Side Entry Modular Jack 1 x 4, Jack Available in 1 x 1-1 x 8-Pole, 1.5A Current
  • RJ45 Connector, Side Entry Modular Jack 1 x 4, Jack Available in 1 x 1-1 x 8-Pole, 1.5A Current
RJ45 Connector, Side Entry Modular Jack 1 x 4, Jack Available in 1 x 1-1 x 8-Pole, 1.5A Current
RJ45 Connector, Side Entry Modular Jack 1 x 4, Jack Available in 1 x 1-1 x 8-Pole, 1.5A Current
RJ45 Connector, Side Entry Modular Jack 1 x 4, Jack Available in 1 x 1-1 x 8-Pole, 1.5A Current
RJ45 Connector, Side Entry Modular Jack 1 x 4, Jack Available in 1 x 1-1 x 8-Pole, 1.5A Current

RJ45 Connector, Side Entry Modular Jack 1 x 4, Jack Available in 1 x 1-1 x 8-Pole, 1.5A Current

Get Latest Price
Payment Type:
T/T in Advance
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T in Advance
Product Description
Product Description
  • Features:
    • Housing material: glass filled polyester UL 94V-0 PBT/nylon
    • Housing color: black or others
    • Contact material: phosphor bronze φ0.46mm
    • Plating: gold plating over nickel
    • Gold plating thickness: 1.5/3/6/15/30/50µ-inch
  • Specifications:
    • Electrical:
      • Voltage rating: 125V AC rms
      • Current rating: 1.5A
      • Contact resistance: 30 milliohms (maximum)
      • Insulator resistance: 500M Ohms (minimum) at 500V DC
      • Dielectric withstanding resistance: 1,000V AC rms 50Hz 1minute
    • Mechanical:
      • Durability: 750 cycles (minimum)
      • PCB retention pre-solder: 1lb (minimum)
    • Environment:
      • Storage temperatures: -40 - 80℃
      • Operating temperatures: -40 - 80℃
  • Housing material: glass filled polyester UL 94V-0 PBT/nylon
  • Housing color: black or others
  • Contact material: phosphor bronze φ0.46mm
  • Plating: gold plating over nickel
  • Gold plating thickness: 1.5/3/6/15/30/50µ-inch
  • Electrical:
    • Voltage rating: 125V AC rms
    • Current rating: 1.5A
    • Contact resistance: 30 milliohms (maximum)
    • Insulator resistance: 500M Ohms (minimum) at 500V DC
    • Dielectric withstanding resistance: 1,000V AC rms 50Hz 1minute
  • Mechanical:
    • Durability: 750 cycles (minimum)
    • PCB retention pre-solder: 1lb (minimum)
  • Environment:
    • Storage temperatures: -40 - 80℃
    • Operating temperatures: -40 - 80℃
  • Voltage rating: 125V AC rms
  • Current rating: 1.5A
  • Contact resistance: 30 milliohms (maximum)
  • Insulator resistance: 500M Ohms (minimum) at 500V DC
  • Dielectric withstanding resistance: 1,000V AC rms 50Hz 1minute
  • Durability: 750 cycles (minimum)
  • PCB retention pre-solder: 1lb (minimum)
  • Storage temperatures: -40 - 80℃
  • Operating temperatures: -40 - 80℃
