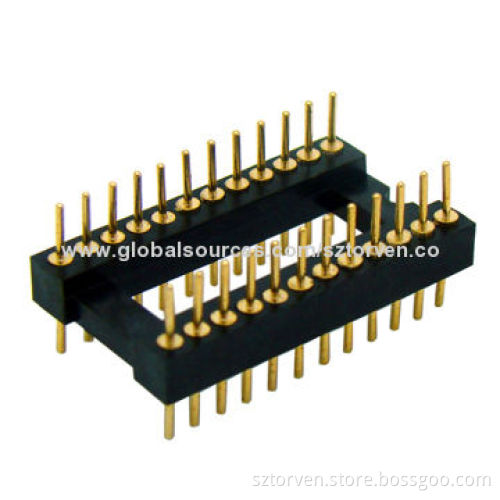

Pin Header, Machined Pin, 1.778mm Pitch, Dual-in-line Spacing 0.4, 0.6, 0.7-inch, 20-68 Pins
- Payment Type:
- Telegraphic Transfer in Advance (Advance TT, T/T)
Your message must be between 20 to 2000 characters
Contact Now| Payment Type: | Telegraphic Transfer in Advance (Advance TT, T/T) |
|---|
- Materials:
- Pin: brass, machined CuZn38Pb3
- Plating:
- Tin-plated: 2µm/80µ Ni, 5µm/200µSn
- Gold-plated: 2µm/80µ Ni, full-gold
- Insulator (black): glass filled thermoplastic polyester PPSUL94V-0
- Electrical:
- Current rating: 3A/contact (maximum)
- Contact resistance: d4M©/contact
- Insulation resistance: e1,000M© at V = 100V
- Operating voltage: 60V AC/DC
- Mechanical:
- Operating temperature: gold-plated: -55 to +125°C
- Tin-plated: -40 to +105°C
- Pin: brass, machined CuZn38Pb3
- Plating:
- Tin-plated: 2µm/80µ Ni, 5µm/200µSn
- Gold-plated: 2µm/80µ Ni, full-gold
- Insulator (black): glass filled thermoplastic polyester PPSUL94V-0
- Current rating: 3A/contact (maximum)
- Contact resistance: d4M©/contact
- Insulation resistance: e1,000M© at V = 100V
- Operating voltage: 60V AC/DC
- Operating temperature: gold-plated: -55 to +125°C
- Tin-plated: -40 to +105°C
- Tin-plated: 2µm/80µ Ni, 5µm/200µSn
- Gold-plated: 2µm/80µ Ni, full-gold
- Insulator (black): glass filled thermoplastic polyester PPSUL94V-0
