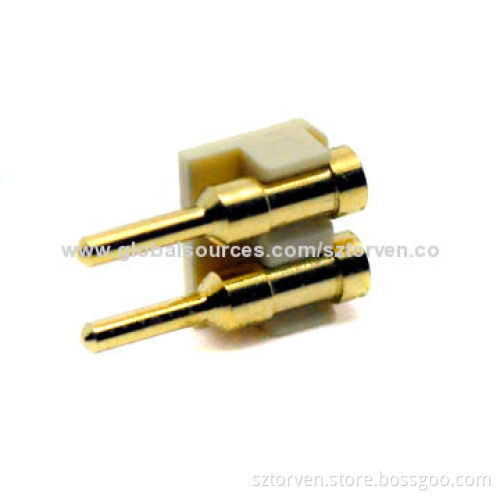

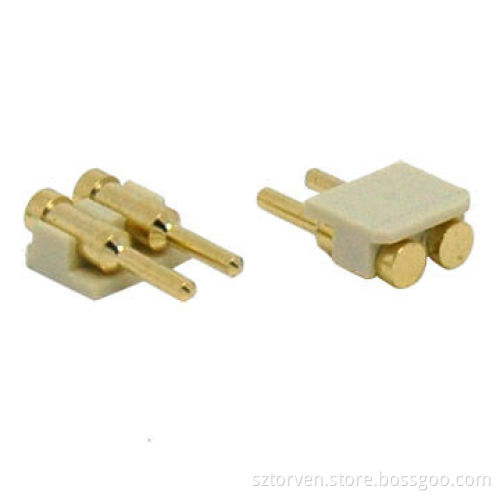

Pin header, 2.54mm machined pin surface mount type 2P, with lift cap, in tape and reel packing
- Payment Type:
- T/T in Advance
Your message must be between 20 to 2000 characters
Contact Now| Payment Type: | T/T in Advance |
|---|
- Pin (outer sleeve): brass, machined CuZn38Pb2
- Tin plated: 2µm/80µ" Ni, 5µm/200µ" Sn
- Gold plated: 2µm/80µ" Ni, full gold
- Current rating: 1Amps/contact max
- Contact resistance: ≤4mΩ/contact
- Insulation resistance: ≥1000MΩ at V=100V
- Operating voltage: 60V AC/DC
- Operating temperatures:
- Gold plated: -55 to 125°C
- Tin plated: -40 to 105°C
- Gold plated: -55 to 125°C
- Tin plated: -40 to 105°C
-
