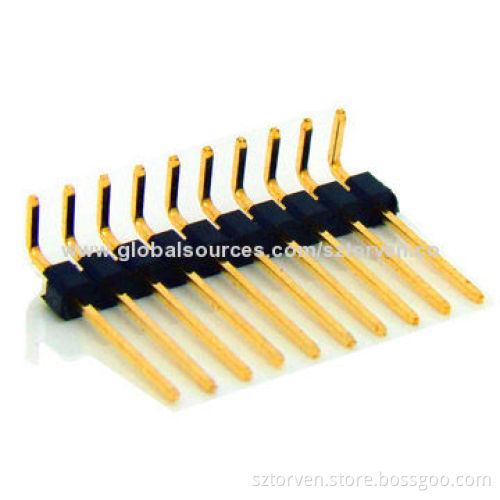

Pin headers, 2.0mm pitch, single row, right angle dip type
  • Pin headers, 2.0mm pitch, single row, right angle dip type
Pin headers, 2.0mm pitch, single row, right angle dip type

Pin headers, 2.0mm pitch, single row, right angle dip type

Get Latest Price
Payment Type:
Telegraphic Transfer in Advance (Advance TT, T/T)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Telegraphic Transfer in Advance (Advance TT, T/T)
Product Description
Product Description
  • Materials:
    • Contact material: brass
    • Contact plating: Au or Sn over 50μ-inch Ni
    • Insulator material: black polyester UL94V-0
    • Standard: PBT+30%G.F
  • Electrical:
    • Current rating: 1.5A/contact (maximum)
    • Contact resistance: ≤20mΩ/contact
    • Insulation resistance: ≥1,000MΩ at 100V
    • Withstanding voltage: 450V AC/minute
  • Mechanical:
    • Mechanical lifespan cycle: 200 (minimum)
    • Operating temperatures:
      • Gold-plated: -55 to 105°C
      • Tin-plated: -40 to 105°C
    • Soldering temperature: 230°C, 10s (maximum)
  • Contact material: brass
  • Contact plating: Au or Sn over 50μ-inch Ni
  • Insulator material: black polyester UL94V-0
  • Standard: PBT+30%G.F
  • Current rating: 1.5A/contact (maximum)
  • Contact resistance: ≤20mΩ/contact
  • Insulation resistance: ≥1,000MΩ at 100V
  • Withstanding voltage: 450V AC/minute
  • Mechanical lifespan cycle: 200 (minimum)
  • Operating temperatures:
    • Gold-plated: -55 to 105°C
    • Tin-plated: -40 to 105°C
  • Soldering temperature: 230°C, 10s (maximum)
  • Gold-plated: -55 to 105°C
  • Tin-plated: -40 to 105°C
