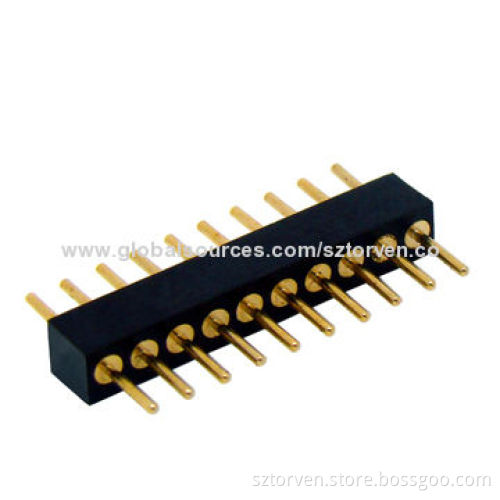

Pin Header, Machined, 1.778mm Pitch, 02-40 Pins Straight Type
  • Pin Header, Machined, 1.778mm Pitch, 02-40 Pins Straight Type
Pin Header, Machined, 1.778mm Pitch, 02-40 Pins Straight Type

Pin Header, Machined, 1.778mm Pitch, 02-40 Pins Straight Type

Get Latest Price
Payment Type:
Telegraphic Transfer in Advance (Advance TT, T/T)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Telegraphic Transfer in Advance (Advance TT, T/T)
Product Description
Product Description
  • Specifications:
    • Materials:
      • Pin: brass, machined CuZn38Pb3
      • Plating: tin-plated: 80µ Ni, 200µ Sn
      • Gold-plated: 1µ Ni, full gold
      • Insulator (black): glass filled thermoplastic polyester PPSUL94V-0
    • Electrical:
      • Current rating: 3A/contact (maximum)
      • Contact resistance: d4M©/contact
      • Insulation resistance: e1,000M© at V = 100V
      • Operating voltage: 60V AC/DC
    • Mechanical:
      • Operating temperature: gold-plated: -55 to +125°C
      • Tin-plated: -40 to +105°C
  • Materials:
    • Pin: brass, machined CuZn38Pb3
    • Plating: tin-plated: 80µ Ni, 200µ Sn
    • Gold-plated: 1µ Ni, full gold
    • Insulator (black): glass filled thermoplastic polyester PPSUL94V-0
  • Electrical:
    • Current rating: 3A/contact (maximum)
    • Contact resistance: d4M©/contact
    • Insulation resistance: e1,000M© at V = 100V
    • Operating voltage: 60V AC/DC
  • Mechanical:
    • Operating temperature: gold-plated: -55 to +125°C
    • Tin-plated: -40 to +105°C
  • Pin: brass, machined CuZn38Pb3
  • Plating: tin-plated: 80µ Ni, 200µ Sn
  • Gold-plated: 1µ Ni, full gold
  • Insulator (black): glass filled thermoplastic polyester PPSUL94V-0
  • Current rating: 3A/contact (maximum)
  • Contact resistance: d4M©/contact
  • Insulation resistance: e1,000M© at V = 100V
  • Operating voltage: 60V AC/DC
  • Operating temperature: gold-plated: -55 to +125°C
  • Tin-plated: -40 to +105°C
