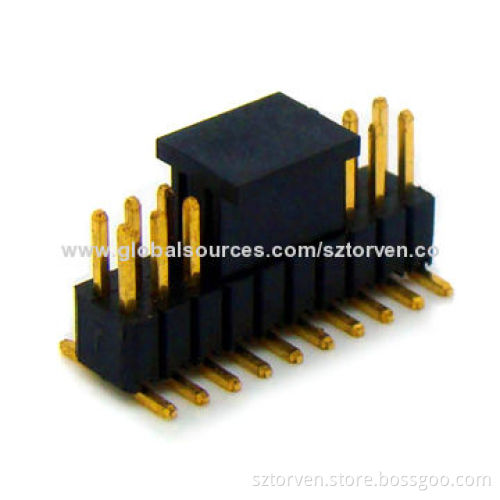

Pin Header, 1.27mm Pitch Dual-row SMD Type, 4-100-pin with Lift Cap
- Payment Type:
- Telegraphic Transfer in Advance (Advance TT, T/T)
Your message must be between 20 to 2000 characters
Contact Now| Payment Type: | Telegraphic Transfer in Advance (Advance TT, T/T) |
|---|
- Contact: brass
- Contact plating: Au or Sn over 50μ Ni
- Insulator: black polyester UL94V-0
- Standard: PA6T + 30% G.F
- Current rating:1Amps/contact maximum
- Contact resistance: ≤20mΩ/contact
- Insulation resistance: ≥1,000mΩ at V=100V
- Withstanding voltage: 300V AC/minute
- Mechanical life cycle: min.200
- Operating temperature:
- Gold plated: -55 to 105°C
- Tin plated: -40 to 105°C
- Soldering temperature: 260°C, 10 seconds (maximum)
- Gold plated: -55 to 105°C
- Tin plated: -40 to 105°C
