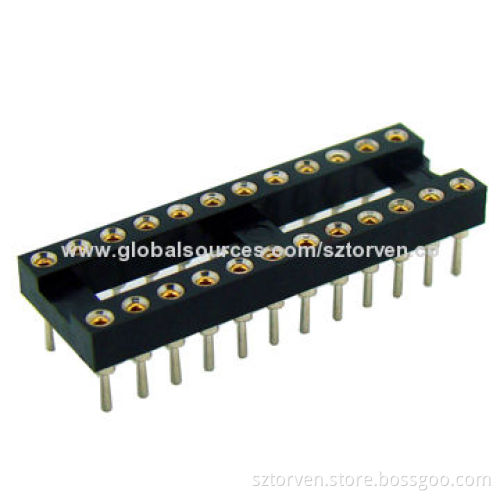

IC socket connector, 2.54mm, straight dip type, dual-in-line, spacing 0.3"
  • IC socket connector, 2.54mm, straight dip type, dual-in-line, spacing 0.3"
IC socket connector, 2.54mm, straight dip type, dual-in-line, spacing 0.3"

IC socket connector, 2.54mm, straight dip type, dual-in-line, spacing 0.3"

Get Latest Price
Payment Type:
Telegraphic Transfer in Advance (Advance TT, T/T)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Telegraphic Transfer in Advance (Advance TT, T/T)
Product Description
Product Description
  • Materials:
    • Pin (outer sleeve): brass, machined CuZn38Pb2
    • Clip (contact 4 finger): beryllium copper, heat treated
    • Plating (outer sleeve):
      • Tin plated: 2µm/80µ" Ni, 5µm/150µ" Sn
      • Plating (contact): 2µm/80µ" Ni, gold 1µ" plated
      • Insulator (black): glass filled thermoplastic polyester
      • UL94V-0 PBT
    • Electrical:
      • Current rating: 3Amps/contact max
      • Contact resistance: ≤4mΩ/contact
      • Insulation resistance: ≥1,000MΩ at V=100V
      • Operating voltage: 60V AC/DC
    • Mechanical:
      • Average insertion force with steel pin of Dia.0.43mm/0.17": ≤250g
      • Average withdrawal force with steel pin of Dia.0.43mm/0.17": ≥50g minimum
      • Mechanical life cycle: min.200
      • Operating temperatures:
        • Gold plated: -55 to 105°C
        • Tin plated: -40 to 105°C
  • Pin (outer sleeve): brass, machined CuZn38Pb2
  • Clip (contact 4 finger): beryllium copper, heat treated
  • Plating (outer sleeve):
    • Tin plated: 2µm/80µ" Ni, 5µm/150µ" Sn
    • Plating (contact): 2µm/80µ" Ni, gold 1µ" plated
    • Insulator (black): glass filled thermoplastic polyester
    • UL94V-0 PBT
  • Electrical:
    • Current rating: 3Amps/contact max
    • Contact resistance: ≤4mΩ/contact
    • Insulation resistance: ≥1,000MΩ at V=100V
    • Operating voltage: 60V AC/DC
  • Mechanical:
    • Average insertion force with steel pin of Dia.0.43mm/0.17": ≤250g
    • Average withdrawal force with steel pin of Dia.0.43mm/0.17": ≥50g minimum
    • Mechanical life cycle: min.200
    • Operating temperatures:
      • Gold plated: -55 to 105°C
      • Tin plated: -40 to 105°C
  • Tin plated: 2µm/80µ" Ni, 5µm/150µ" Sn
  • Plating (contact): 2µm/80µ" Ni, gold 1µ" plated
  • Insulator (black): glass filled thermoplastic polyester
  • UL94V-0 PBT
  • Current rating: 3Amps/contact max
  • Contact resistance: ≤4mΩ/contact
  • Insulation resistance: ≥1,000MΩ at V=100V
  • Operating voltage: 60V AC/DC
  • Average insertion force with steel pin of Dia.0.43mm/0.17": ≤250g
  • Average withdrawal force with steel pin of Dia.0.43mm/0.17": ≥50g minimum
  • Mechanical life cycle: min.200
  • Operating temperatures:
    • Gold plated: -55 to 105°C
    • Tin plated: -40 to 105°C
  • Gold plated: -55 to 105°C
  • Tin plated: -40 to 105°C
