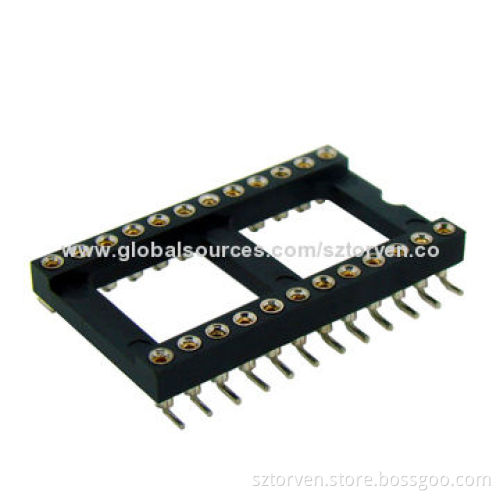

IC Socket Connector, 2.54mm, SMT Type Dual-in-line, Spacing 0.3, 0.4 or 0.6 Inch
  • IC Socket Connector, 2.54mm, SMT Type Dual-in-line, Spacing 0.3, 0.4 or 0.6 Inch
IC Socket Connector, 2.54mm, SMT Type Dual-in-line, Spacing 0.3, 0.4 or 0.6 Inch

IC Socket Connector, 2.54mm, SMT Type Dual-in-line, Spacing 0.3, 0.4 or 0.6 Inch

Get Latest Price
Payment Type:
Telegraphic Transfer in Advance (Advance TT, T/T)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Telegraphic Transfer in Advance (Advance TT, T/T)
Product Description
Product Description
  • Materials:
    • Pin (outer sleeve): brass, machined CuZn38Pb2
    • Clip (contact 4 finger): beryllium copper, heat treated
    • Plating (outer sleeve):
      • Tin plated: 2µm/80µ"Ni, 5µm/150µ"Sn
    • Plating (contact): 2µm/80µ"Ni, gold 1µ"plated
    • Insulator (black):
      • Glass filled thermoplastic polyester
      • UL94V-0 PBT
  • Electrical:
    • Current rating: 3Amps/contact maximum
    • Contact resistance: ≤4mΩ/contact
    • Insulation resistance: ≥1000MΩ at V=100V
    • Operating voltage: 60V AC/DC
  • Mechanical:
    • Average insertion force with steel pin of %%c 0.43mm/0.17": <250g
    • Average withdrawal force with steel pin of %%c 0.43mm/0.17": >50g minimum
    • Mechanical lifespan cycle: minimum 200
    • Operating temperatures:
      • Gold plated: -55 to +105°C
      • Tin plated: -40°C to+105°C
  • Pin (outer sleeve): brass, machined CuZn38Pb2
  • Clip (contact 4 finger): beryllium copper, heat treated
  • Plating (outer sleeve):
    • Tin plated: 2µm/80µ"Ni, 5µm/150µ"Sn
  • Plating (contact): 2µm/80µ"Ni, gold 1µ"plated
  • Insulator (black):
    • Glass filled thermoplastic polyester
    • UL94V-0 PBT
  • Tin plated: 2µm/80µ"Ni, 5µm/150µ"Sn
  • Glass filled thermoplastic polyester
  • UL94V-0 PBT
  • Current rating: 3Amps/contact maximum
  • Contact resistance: ≤4mΩ/contact
  • Insulation resistance: ≥1000MΩ at V=100V
  • Operating voltage: 60V AC/DC
  • Average insertion force with steel pin of %%c 0.43mm/0.17": <250g
  • Average withdrawal force with steel pin of %%c 0.43mm/0.17": >50g minimum
  • Mechanical lifespan cycle: minimum 200
  • Operating temperatures:
    • Gold plated: -55 to +105°C
    • Tin plated: -40°C to+105°C
  • Gold plated: -55 to +105°C
  • Tin plated: -40°C to+105°C
