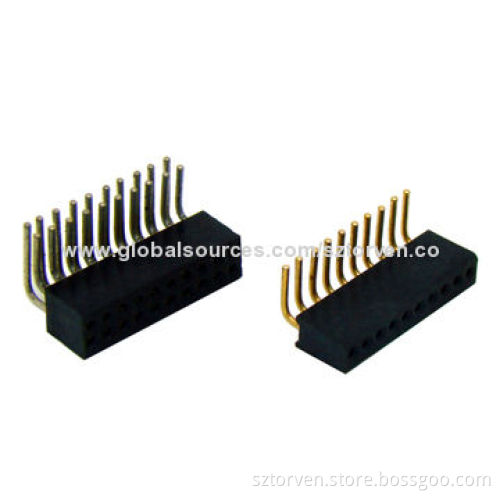

Socket Connectors, 1.27mm, Right Angle DIP Type, Single and Dual Rows
- Payment Type:
- Telegraphic Transfer in Advance (Advance TT, T/T)
Your message must be between 20 to 2000 characters
Contact Now| Payment Type: | Telegraphic Transfer in Advance (Advance TT, T/T) |
|---|
- Pin (outer sleeve): brass, machined CuZn38Pb2
- Clip (contact 6 finger): beryllium copper, heat-treated
- Plating (outer sleeve):
- Tin plated: 2µm/80µ Ni, 5µm/150µ Sn
- Gold plated: 2µm/80µ Ni, full gold
- Plating (contact): 2µm/80µ Ni, gold or tin-plated
- Insulator (black):
- Glass filled thermoplastic polyester
- UL94V-0
- Current rating: 1Amps/contact maximum
- Contact resistance: ≤4mΩ/contact
- Insulation resistance: ≥1000MΩ at V=100V
- Operating voltage: 60V AC/DC
- Tin plated: 2µm/80µ Ni, 5µm/150µ Sn
- Gold plated: 2µm/80µ Ni, full gold
- Glass filled thermoplastic polyester
- UL94V-0
