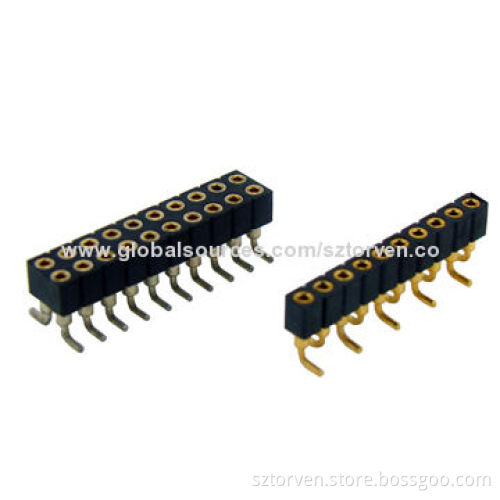

Socket Connectors, 2.0mm, SMT Type, Single and Dual Rows
  • Socket Connectors, 2.0mm, SMT Type, Single and Dual Rows
Socket Connectors, 2.0mm, SMT Type, Single and Dual Rows

Socket Connectors, 2.0mm, SMT Type, Single and Dual Rows

Get Latest Price
Payment Type:
Telegraphic Transfer in Advance (Advance TT, T/T)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Telegraphic Transfer in Advance (Advance TT, T/T)
Product Description
Product Description
  • Materials:
    • Pin (outer sleeve): brass, machined CuZn38Pb2
    • Clip (contact 6 finger): beryllium copper, heat-treated
    • Plating (outer sleeve):
      • Tin-plated: 2µm/80µ Ni, 5µm/150µ-inch Sn
      • Gold-plated: 2µm/80µ Ni, full gold
    • Plating (contact): 2µm/80µ Ni, gold or tin-plated
    • Insulator (black):
      • Glass filled thermoplastic polyester
      • UL94V-0
  • Electrical:
    • Current rating: 1Amps/contact (maximum)
    • Contact resistance: ≤4mΩ/contact
    • Insulation resistance: ≥1000MΩ at V=100V
    • Operating voltage: 60V AC/DC
  • Mechanical:
    • Average insertion force with steel pin of %%c 0.43mm/0.17-inch: <50g
    • Average withdrawal force with steel pin of %%c 0.43mm/0.17-inch: >15g (minimum)
    • Mechanical lifespan cycle: minimum 200
    • Operating temperature:
      • Gold-plated: -55 to +105°C
      • Tin-plated: -40 to +105°C
  • Pin (outer sleeve): brass, machined CuZn38Pb2
  • Clip (contact 6 finger): beryllium copper, heat-treated
  • Plating (outer sleeve):
    • Tin-plated: 2µm/80µ Ni, 5µm/150µ-inch Sn
    • Gold-plated: 2µm/80µ Ni, full gold
  • Plating (contact): 2µm/80µ Ni, gold or tin-plated
  • Insulator (black):
    • Glass filled thermoplastic polyester
    • UL94V-0
  • Tin-plated: 2µm/80µ Ni, 5µm/150µ-inch Sn
  • Gold-plated: 2µm/80µ Ni, full gold
  • Glass filled thermoplastic polyester
  • UL94V-0
  • Current rating: 1Amps/contact (maximum)
  • Contact resistance: ≤4mΩ/contact
  • Insulation resistance: ≥1000MΩ at V=100V
  • Operating voltage: 60V AC/DC
  • Average insertion force with steel pin of %%c 0.43mm/0.17-inch: <50g
  • Average withdrawal force with steel pin of %%c 0.43mm/0.17-inch: >15g (minimum)
  • Mechanical lifespan cycle: minimum 200
  • Operating temperature:
    • Gold-plated: -55 to +105°C
    • Tin-plated: -40 to +105°C
  • Gold-plated: -55 to +105°C
  • Tin-plated: -40 to +105°C
