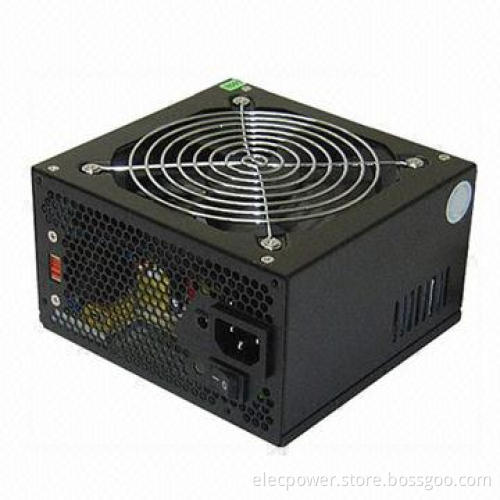

PSU 500 Power Supply with 12cm Fan for ATX Cases, 3.3V Magnetic Design Stronger

PSU 500 Power Supply with 12cm Fan for ATX Cases, 3.3V Magnetic Design Stronger

Get Latest Price

Payment Type:: T/T or L/C

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T or L/C

Product Description

Specifications:

High-quality and reliability
The efficiency of power above 72 percent, 80 plus(optional)
Multiple protection function: OVP (over-voltage protection),OCP (over-current protection), OPP (over-power protection) and SCP(short-circuit protection)
MTBF: >50,000 hours at 25%
Case: SECC 0.5, 0.6, 0.8mm
100% ATE test, 100% high-temperature burn in test (45 to52°C)
Dimensions (W x H x D): 150 x 86 x 140mm
Fan: 8, 12, 14cm (optional)
DC connector: 24-pin, HDD, FDD, SATA, P4, P4 + 4, P6
Power cord: 1.2 or 1.5m European
Stronger 3.3V magnetic design
Power factor: APFC, PPFC (optional)
Input voltage: 90 to 132V or 180 to 264V AC
Frequency: 50 to 60Hz
Intel/AMD dual-core processor compatible, compliant with SSIEPS 12V and ATX 12V 1.3/2.0/2.1/2.2 /3.0 version
Colors: matte, painting black, electroplating silver, golden,blue, red
Real watts power supply
Packing: in PE bag package or in color box package
Low-ripple and noise design
OEM/ODM orders are welcomed

High-quality and reliability

The efficiency of power above 72 percent, 80 plus(optional)

Multiple protection function: OVP (over-voltage protection),OCP (over-current protection), OPP (over-power protection) and SCP(short-circuit protection)

MTBF: >50,000 hours at 25%

Case: SECC 0.5, 0.6, 0.8mm

100% ATE test, 100% high-temperature burn in test (45 to52°C)

Dimensions (W x H x D): 150 x 86 x 140mm

Fan: 8, 12, 14cm (optional)

DC connector: 24-pin, HDD, FDD, SATA, P4, P4 + 4, P6

Power cord: 1.2 or 1.5m European

Stronger 3.3V magnetic design

Power factor: APFC, PPFC (optional)

Input voltage: 90 to 132V or 180 to 264V AC

Frequency: 50 to 60Hz

Intel/AMD dual-core processor compatible, compliant with SSIEPS 12V and ATX 12V 1.3/2.0/2.1/2.2 /3.0 version
