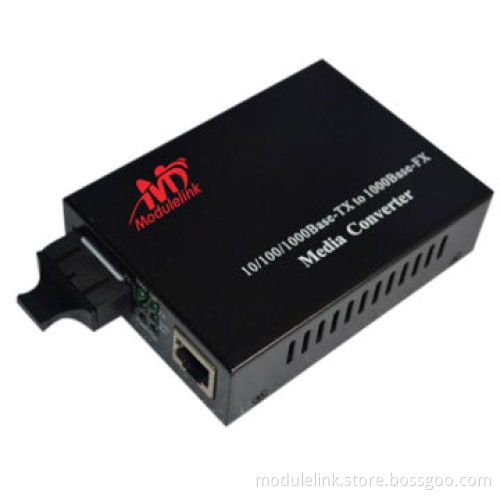

10/100/1000Base-Tx to 1000Base-Fx Gigabit Ethernet Fiber Media Converter

10/100/1000Base-Tx to 1000Base-Fx Gigabit Ethernet Fiber Media Converter

Get Latest Price

Payment Type:: Telegraphic Transfer in Advance (Advance TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

The transmission of a channel signals can be completed bysingle fiber, it has doubled in quantity of fiber data transmissioncompared with twin fiber

Auto negotiation function allows UTP ports to auto select10/100/1000M and full or half duplex

The UTP port supports the connection of MDI/MDI-X autocrossover

Multi-mode fiber: the maximum distance is up to 224/550m

Single-mode fiber: the maximum distance is up to 100km

Supports maximum of 1,536-byte Ethernet packet

Supports flow control

Adapts internal power supply

Operating standards:

IEEE802.3 10Base-T Ethernet
IEEE802.3u 100Base-TX/FX Fast Ethernet
IEEE802.3ab 1000Base-T
IEEE802.3z 1000Base-SX/LX Gigabit

Wavelength: 850/1,310/1,550nm

Mac address table: 4K

Data buffer: 256K

Connector:

UTP: RJ-45, 10/100/1,000Mbps

Fiber: SC, 1,000Mbps

Cable:

UTP cable: Cat 5e or 6 (the maximum distance is up to100m)

Fiber:

Multi-mode: 50/125, 62.5/125¼m (the maximum distance isup to 550/224m)
Single mode: 8.3/125, 8.7/125, 9/125¼m (the maximumdistance is up to 120km)

Connector: FC/PC or SC or SFP port

Flow control:

Full duplex: IEEE802.3x
Half duplex: back pressure

Conversion mode: medium conversion

Delay: <10¼s

Bit error rate: <1/1000000000

MTBF: 80,000 hours

LED:

Power (power)
FX LINK (fiber link action)
TP LINK1000 (twisted pair connection 1,000M)
TP LINK100 (twisted pair connection 100M)
TP ACT (twisted pair packet forwarding action)
FDX (Ethernet interface mode indicator on, full duplex/off,half duplex)

Power requirements:

Inputs: AC 170 - 240V or DC -36 - 72V
Output: DC 5V 2A
Power consumption: 5W
Ambient temperatures: 0 - 50°C
Storage temperatures: -20 - 70°C
Humidity: 5 - 90%

Dimensions:

Internal power: 30x110x140mm
External power: 26x70x93mm

IEEE802.3 10Base-T Ethernet

IEEE802.3u 100Base-TX/FX Fast Ethernet

IEEE802.3ab 1000Base-T

IEEE802.3z 1000Base-SX/LX Gigabit

UTP cable: Cat 5e or 6 (the maximum distance is up to100m)

Multi-mode: 50/125, 62.5/125¼m (the maximum distance isup to 550/224m)

Single mode: 8.3/125, 8.7/125, 9/125¼m (the maximumdistance is up to 120km)

Full duplex: IEEE802.3x

Half duplex: back pressure

Power (power)

FX LINK (fiber link action)

TP LINK1000 (twisted pair connection 1,000M)

TP LINK100 (twisted pair connection 100M)

TP ACT (twisted pair packet forwarding action)

FDX (Ethernet interface mode indicator on, full duplex/off,half duplex)

Inputs: AC 170 - 240V or DC -36 - 72V

Output: DC 5V 2A

Power consumption: 5W

Ambient temperatures: 0 - 50°C

Storage temperatures: -20 - 70°C

Humidity: 5 - 90%

Internal power: 30x110x140mm

External power: 26x70x93mm
