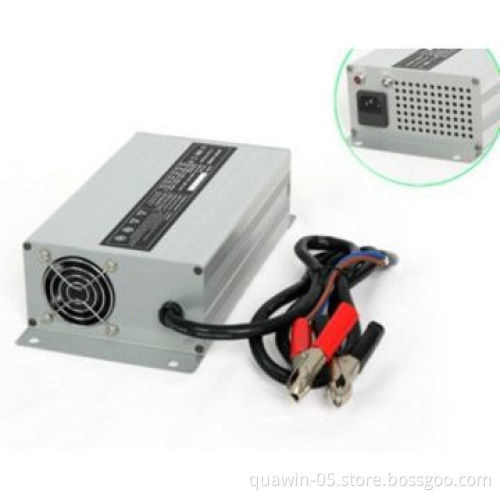

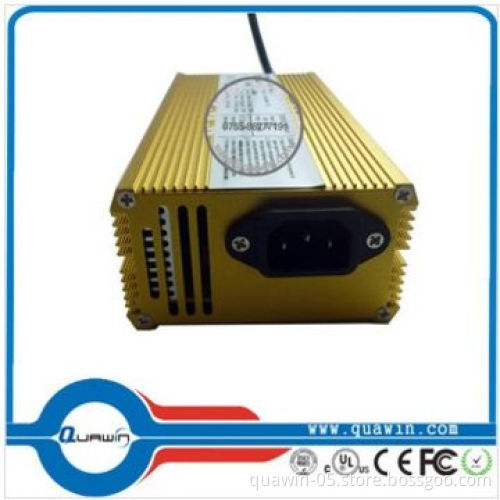

62.9V Li-ion lithium polymer battery charger (71.4V 24A)

Quick detail:

Brand name: QUAWIN
Model number: QW629-240-L
Use: 62.9V Li-ion or Li-polymer battery pack
Type: electric
Place of origin: Guangdong China (Mainland)
Battery charger: automatic battery charger 71.4V
Certificate: CE, RoHS
Colors: black/silver
Input voltages: AC 180-264V, 45/65Hz
Output voltage: 71.4V
Output current: 24A
Output power: 1713.6W
Charge modes: CC-CV (constant current-constant voltage), with MCU controller
Output connector: alligator clip, SR175A output plug, SB175A output plug, SB50A output plug, custom

Packaging and delivery:

Inner package: white box/polybags/according to your request
Outer package: carton
Delivery detail: sample within 5 work days, 7-25 days for bulk order

Specifications: 62.9V Li-ion or lithium polymer battery pack

Features:

High efficiency and low power consumption
Stabilized output and low noise
Efficiency (at 100% load): ≥90%
Operating temperatures: -10-45°C
Storage temperatures: -20-70°C
Operating humidity range: 5-90% RH
Shock and vibration: SAEJ1378 standard

Specifications:

Input: AC 180-264V, 45/65Hz
Output: DC 71.4V
Charging current: 24A
Weight: 3,500g (only body)
Dimensions: 290*150*85mm
Safety protections:
- Over voltage protection
- Short-circuit protection
- Polarity error protection
- Over power protection
- The charger turn trickle-off charging mode if battery is full (1/10C), and indicate by LED:
  - LED always green: fully charged or no connected
  - LED slowly flashes red: battery is being charged
  - LED fast flashes red: charger under protection (over temperature protection, output over-voltage protection)
  - Call us to know more details datasheet

Brand name: QUAWIN

Model number: QW629-240-L

Use: 62.9V Li-ion or Li-polymer battery pack

Type: electric

Place of origin: Guangdong China (Mainland)

Battery charger: automatic battery charger 71.4V

Certificate: CE, RoHS

Colors: black/silver

Input voltages: AC 180-264V, 45/65Hz

Output voltage: 71.4V

Output current: 24A

Output power: 1713.6W

Charge modes: CC-CV (constant current-constant voltage), with MCU controller

Output connector: alligator clip, SR175A output plug, SB175A output plug, SB50A output plug, custom

Inner package: white box/polybags/according to your request

Outer package: carton

Delivery detail: sample within 5 work days, 7-25 days for bulk order

High efficiency and low power consumption

Stabilized output and low noise

Efficiency (at 100% load): ≥90%

Operating temperatures: -10-45°C

Storage temperatures: -20-70°C

Operating humidity range: 5-90% RH

Shock and vibration: SAEJ1378 standard

Input: AC 180-264V, 45/65Hz

Output: DC 71.4V

Charging current: 24A

Weight: 3,500g (only body)

Dimensions: 290*150*85mm

Safety protections:

Over voltage protection
Short-circuit protection
Polarity error protection
Over power protection
The charger turn trickle-off charging mode if battery is full (1/10C), and indicate by LED:
- LED always green: fully charged or no connected
- LED slowly flashes red: battery is being charged
- LED fast flashes red: charger under protection (over temperature protection, output over-voltage protection)
- Call us to know more details datasheet

Over voltage protection

Short-circuit protection

Polarity error protection

Over power protection

The charger turn trickle-off charging mode if battery is full (1/10C), and indicate by LED:

LED always green: fully charged or no connected
LED slowly flashes red: battery is being charged
LED fast flashes red: charger under protection (over temperature protection, output over-voltage protection)
Call us to know more details datasheet

LED always green: fully charged or no connected

LED slowly flashes red: battery is being charged

LED fast flashes red: charger under protection (over temperature protection, output over-voltage protection)

Call us to know more details datasheet
