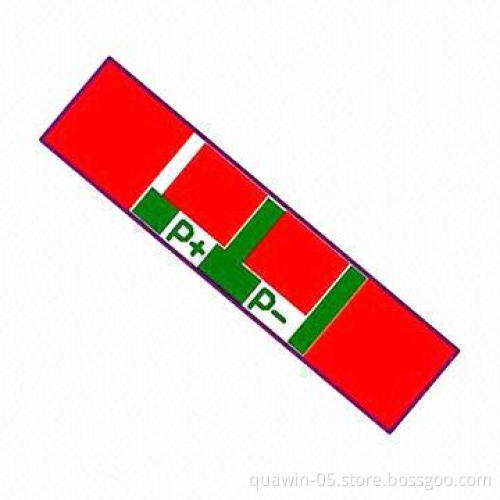

Protection Circuit Module for 1S Li-ion/ Li-Polymer/ LiFePO4 Battery Pack

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Maximal continuous charging and discharging current: 2.5A

Voltage:

Charging voltage:
CC/CV: Li-ion/Li-polymer (4.2V/cell) and LiFePO4 (3.6V/cell)
Balance voltage for single cell

Current:

Over-charge protection:

Over-discharge protection:

Over-current protection:

Short protection:

Resistance: protection circuitry (B- to P-) ≤60mΩ

Operating temperature range: -40 to +85 degrees C

Storage temperature range: -40 to +125 degrees C

Size (L x W x T): 15 x 3.5 x 2.5mm

Charging voltage:

CC/CV: Li-ion/Li-polymer (4.2V/cell) and LiFePO4 (3.6V/cell)

Balance voltage for single cell

Balance current for single cell

Balance current for single cell ≤10μA

Maximal continuous charging and discharging current: 2.5A

Over-charge detection voltage: 3.8-4.4V (can adjust)

Over-charge detection delay time: 0.5-2.5S

Over charge release voltage: 3.8-4.4V (can adjust)

Over-discharge detection voltage: 1.9-3.1V (can adjust)

Over discharge detection delay time: 50-300mS

Over discharge release voltage: 1.9-3.1V (can adjust)

Over current detection voltage: 0.06-0.6V

Over current detection current: 1-5A

Detection delay time: 1-50ms

Release condition cut load

Detection condition exterior short circuit

Detection delay time: 200-500us

Release condition cut load
