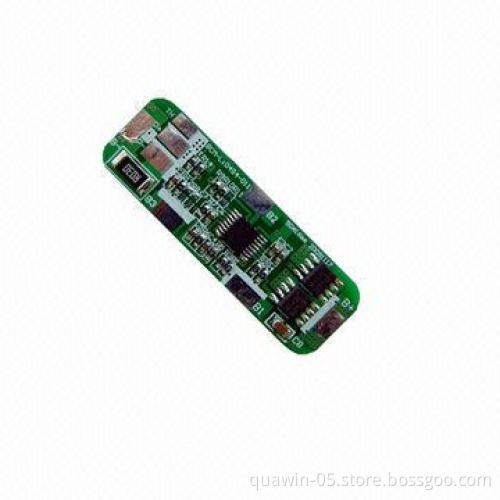

12.8V battery management system for LiFePo4 battery pack

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Current balance current for single cell

Current consumption for single cell: ≤50μA

Maximal continuous discharging current: 4A

Overcharge protection:

Over-discharge protection:

Over-current protection:

Release condition automatic recovery:

Size: (L)150x(W)16x(T)3mm

Over-charge detection voltage: 3.90 ±0.025V

Over-charge detection delay time: 0.5 to 1.5S

Over-charge release voltage: 3.80 ±0.025V

Over-discharge detection voltage: 2.30 ±0.05V

Over-discharge detection delay time: 0.5 to 1.5S

Over-discharge release voltage: 2.3 ±0.05V

Over-current detection voltage: 0.3V

Over-current detection current: 12 ±3A

Detection delay time: 5 to 15ms

Short protection detection condition exteriorshort-circuit

Detection delay time: 200 to 500μs

Resistance protection circuitry: ≤60mΩ

Temperature operating temperature range: -40 to +85°C

Storage temperature range: -40 to +125C
