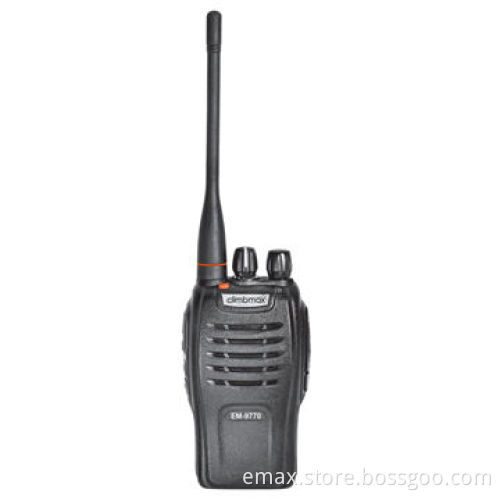

7W Two-way Radio with 3 to 30km Range, Emergency Alarm and Wire Copy Functions
  • 7W Two-way Radio with 3 to 30km Range, Emergency Alarm and Wire Copy Functions
7W Two-way Radio with 3 to 30km Range, Emergency Alarm and Wire Copy Functions

7W Two-way Radio with 3 to 30km Range, Emergency Alarm and Wire Copy Functions

Get Latest Price
Payment Type:
Telegraphic Transfer (TT, T/T)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Telegraphic Transfer (TT,T/T)
Product Description
Product Description
  • Features:
    • Output power 2W/ 7W
    • Range: 3 to 30km
    • 16(15+S) stored channels
    • CTCSS/DCS
    • DTMF/VOX function
    • Multi-scan mode/voice security device
    • PC programmable
    • Wire copy function
    • Emergency alarm function
  • Specifications:
    • Frequency range: 400 to 470MHx
    • Frequency circuit: PLL
    • Mode: F3E
    • Form: with the frequently single worker or the different single worker frequently
    • Antenna impedance: 50Ω
    • Step size: 25/12.5KHz
    • DV voltage: 7.5V DC ±15%
    • Operation temperatures: -25 to +55°C
    • Distances: 3 to 30km(open ground)
    • Channel number: 16 channels (15+S)
    • Dimensions: 115(L) x 59(W) x 34mm(D)
    • Weight: 198G（include the lithium battery group）
  • Transmitter:
    • Power output: 2/7W
    • Modulation distortion: <5%(300 to 3KHz)
    • Maximum frequency deviation: <±5KHz
    • Spurious radiation: ±2.5ppm
    • Frequency stability: 6dB
    • Transmitting current: ≤1,300mA
  • Receiver:
    • Circuitry: double super heterodyne
    • Sensitivity: <0.18μV (12dB SINAD)
    • Squelch sensitivity: <0.16μV
    • Squelch: programable
    • Audio power: ≥0.6W
    • Receiving current: <100mV
  • Output power 2W/ 7W
  • Range: 3 to 30km
  • 16(15+S) stored channels
  • CTCSS/DCS
  • DTMF/VOX function
  • Multi-scan mode/voice security device
  • PC programmable
  • Wire copy function
  • Emergency alarm function
  • Frequency range: 400 to 470MHx
  • Frequency circuit: PLL
  • Mode: F3E
  • Form: with the frequently single worker or the different single worker frequently
  • Antenna impedance: 50Ω
  • Step size: 25/12.5KHz
  • DV voltage: 7.5V DC ±15%
  • Operation temperatures: -25 to +55°C
  • Distances: 3 to 30km(open ground)
  • Channel number: 16 channels (15+S)
  • Dimensions: 115(L) x 59(W) x 34mm(D)
  • Weight: 198G（include the lithium battery group）
  • Power output: 2/7W
  • Modulation distortion: <5%(300 to 3KHz)
  • Maximum frequency deviation: <±5KHz
  • Spurious radiation: ±2.5ppm
  • Frequency stability: 6dB
  • Transmitting current: ≤1,300mA
  • Circuitry: double super heterodyne
  • Sensitivity: <0.18μV (12dB SINAD)
  • Squelch sensitivity: <0.16μV
  • Squelch: programable
  • Audio power: ≥0.6W
  • Receiving current: <100mV
