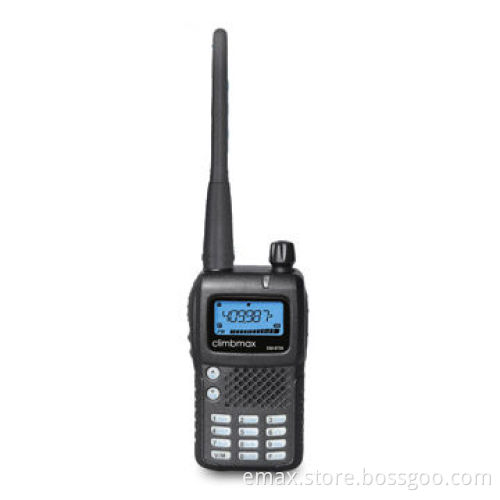

Handheld Transceiver with LPD + PMR + FRS Frequency, CTCSS and DCS Functions

Get Latest Price

Payment Type:: Telegraphic Transfer (TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Type 1:

Features:
- Scrambler function
- Alarm function
- Li-ion battery (1,500mAh)
- Talk around function
- Programmable by computer
- DTMF encoding and decoding (optional)
- CTCSS and DCS functions
- All call, group call and selective call function
Output power: 5W VHF/4W UHF and high (5)/middle (3)/low (1W) switchable
VHF frequency range: 136 to 174MHz
UHF frequencies: 400 to 430, 440 to 470 or 400 to 470MHz

Type 2:

FRS + LPD or PMR + LPD radio
FRS:
- Frequency range: 462.5625 to 467.7125MHz (USA FRS)
- Supports 01 to 14 channels (USA FRS)
- Channel spacing: 25kHz (USA FRS)
- Output power: 3W
PMR:
- Frequency range: 446.00625 to 446.09375MHz (Europe PMR)
- Channel spacing: 12.5kHz (Europe PMR)
- Main channels: 01 to 08 (Europe PMR)
- Output power: 3W
LPD:
- Frequency range: 433.075 to 434.775MHz
- Main channels: 1 to 69 channels
- Channel spacing: 25kHz
- Output power: 3W

Specification:

Frequency range:
- EM-9735V:
  136 to 174MHz
- EM-9735U:
  400 to 430MHz
  440 to 470MHz (optional)
  400 to 470MHz (optional)
Output power: 1, 3 or 5W
Memory channel: 128 channels
Rated voltage: 6V DC ±20%
Temperature range: -20 to 60°C
Frequency stability: ±5.0p-pm
Receiving parts:
- Sensitivity: <0.2μV (20dB SINAD)
- Maximum deviation: ±5kHz
- Selectivity: ≥65dB
- Ant-interference of interchanges: ≥60dB
- Spurious response rejection: ≥60dB
- Audio power: 400mW, <3%
Launching parts:
- Output power: ≤5W ±0.5W
- Modulation mode: F3E
- Spurious radiation: ≥60dB (-)
- FM noise: ≥45dB
- Distortion: <5% (300 to 3,000Hz)
- Maximum deviation: ±5kHz (1,000kHz, 100%)
Size: 98 x 53 x 30mm
Weight: 220g (including Ni-MH battery)

Features:

Scrambler function
Alarm function
Li-ion battery (1,500mAh)
Talk around function
Programmable by computer
DTMF encoding and decoding (optional)
CTCSS and DCS functions
All call, group call and selective call function

Output power: 5W VHF/4W UHF and high (5)/middle (3)/low (1W) switchable

VHF frequency range: 136 to 174MHz

UHF frequencies: 400 to 430, 440 to 470 or 400 to 470MHz

Scrambler function

Alarm function

Li-ion battery (1,500mAh)

Talk around function

Programmable by computer

DTMF encoding and decoding (optional)

CTCSS and DCS functions

All call, group call and selective call function

FRS + LPD or PMR + LPD radio

FRS:

Frequency range: 462.5625 to 467.7125MHz (USA FRS)
Supports 01 to 14 channels (USA FRS)
Channel spacing: 25kHz (USA FRS)
Output power: 3W

PMR:

Frequency range: 446.00625 to 446.09375MHz (Europe PMR)
Channel spacing: 12.5kHz (Europe PMR)
Main channels: 01 to 08 (Europe PMR)
Output power: 3W

LPD:

Frequency range: 433.075 to 434.775MHz
Main channels: 1 to 69 channels
Channel spacing: 25kHz
Output power: 3W

Frequency range: 462.5625 to 467.7125MHz (USA FRS)

Supports 01 to 14 channels (USA FRS)

Channel spacing: 25kHz (USA FRS)

Output power: 3W

Frequency range: 446.00625 to 446.09375MHz (Europe PMR)

Channel spacing: 12.5kHz (Europe PMR)

Main channels: 01 to 08 (Europe PMR)

Output power: 3W

Frequency range: 433.075 to 434.775MHz

Main channels: 1 to 69 channels

Channel spacing: 25kHz

Output power: 3W

Frequency range:

EM-9735V:
136 to 174MHz
EM-9735U:
400 to 430MHz
440 to 470MHz (optional)
400 to 470MHz (optional)

Output power: 1, 3 or 5W

Memory channel: 128 channels

Rated voltage: 6V DC ±20%

Temperature range: -20 to 60°C

Frequency stability: ±5.0p-pm

Receiving parts:

Sensitivity: <0.2μV (20dB SINAD)
Maximum deviation: ±5kHz
Selectivity: ≥65dB
Ant-interference of interchanges: ≥60dB
Spurious response rejection: ≥60dB
Audio power: 400mW, <3%

Launching parts:

Output power: ≤5W ±0.5W
Modulation mode: F3E
Spurious radiation: ≥60dB (-)
FM noise: ≥45dB
Distortion: <5% (300 to 3,000Hz)
Maximum deviation: ±5kHz (1,000kHz, 100%)

Size: 98 x 53 x 30mm

Weight: 220g (including Ni-MH battery)

EM-9735V:
136 to 174MHz

EM-9735U:
400 to 430MHz
440 to 470MHz (optional)
400 to 470MHz (optional)

Sensitivity: <0.2μV (20dB SINAD)

Maximum deviation: ±5kHz

Selectivity: ≥65dB

Ant-interference of interchanges: ≥60dB

Spurious response rejection: ≥60dB

Audio power: 400mW, <3%

Output power: ≤5W ±0.5W

Modulation mode: F3E

Spurious radiation: ≥60dB (-)

FM noise: ≥45dB

Distortion: <5% (300 to 3,000Hz)

Maximum deviation: ±5kHz (1,000kHz, 100%)
