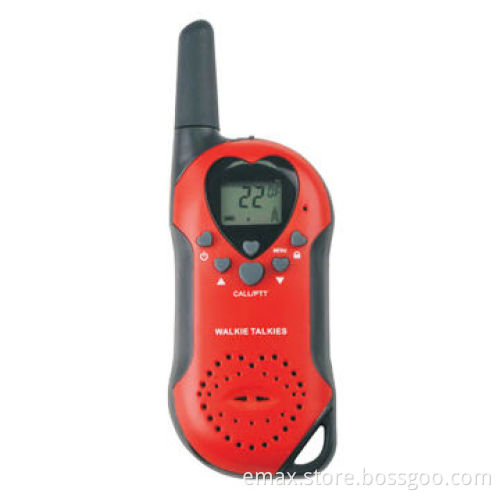

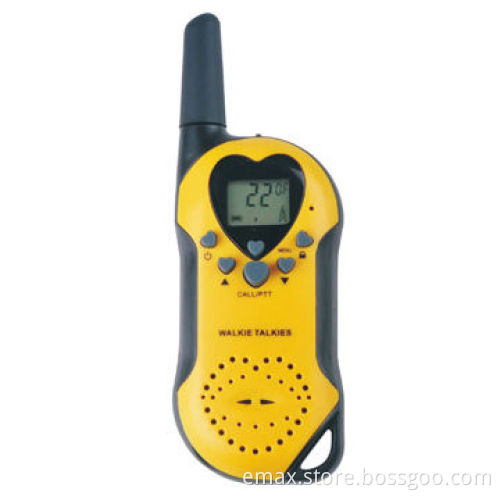

PMR and FRS Walkie Talkie with 150/30mA Current Consumption, 50dB Sensitivity
  • PMR and FRS Walkie Talkie with 150/30mA Current Consumption, 50dB Sensitivity
  • PMR and FRS Walkie Talkie with 150/30mA Current Consumption, 50dB Sensitivity
PMR and FRS Walkie Talkie with 150/30mA Current Consumption, 50dB Sensitivity
PMR and FRS Walkie Talkie with 150/30mA Current Consumption, 50dB Sensitivity

PMR and FRS Walkie Talkie with 150/30mA Current Consumption, 50dB Sensitivity

Get Latest Price
Payment Type:
Telegraphic Transfer (TT, T/T)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Telegraphic Transfer (TT,T/T)
Product Description
Product Description
  • Specifications:
    • Communication range: up to 2 miles (3km)
    • Frequency range:
      • 462.5625 to 467.7125MHz (USA FRS)
      • 462.5625 to 467.7250MHz (Canada GMRS)
      • 446.00625 to 446.09375MHz (Europe PMR)
    • Channel:
      • Spacing: 25kHz (USA FRS), 12.5kHz (Europe PMR)
      • Main channel: 01-14 (USA FRS), 01-08 (Europe PMR)
      • CTCSS sub-channels: 00-38
    • Transmitter:
      • RF power: 500mW/1W (ERP)
      • Frequency:
        • Deviation: 2.5kHz (maximum)
        • Distortion: 5%kHz (maximum)
      • S/N ratio: 40dB (maximum)
      • Harmonic and spurious attenuation: >50dB
      • Current consumption: 300, 30mA
    • Receiver:
      • Sensitivity: 0.33mV at 12dB sinad
      • Selectivity: 50dB (minimum)
      • Squelch sensitivity: 0.25mV (typical)
      • Spurious rejection: 50dB (minimum)
      • Inter modulation rejection: 50dB (minimum)
    • Audio:
      • Output power: 150mW at 16Ω, <10% THD
      • Current consumption: 150/30mA
  • Accessories:
    • Rechargeable battery, earphone, AC adapter, base charge, belt clip, user's manual
  • Communication range: up to 2 miles (3km)
  • Frequency range:
    • 462.5625 to 467.7125MHz (USA FRS)
    • 462.5625 to 467.7250MHz (Canada GMRS)
    • 446.00625 to 446.09375MHz (Europe PMR)
  • Channel:
    • Spacing: 25kHz (USA FRS), 12.5kHz (Europe PMR)
    • Main channel: 01-14 (USA FRS), 01-08 (Europe PMR)
    • CTCSS sub-channels: 00-38
  • Transmitter:
    • RF power: 500mW/1W (ERP)
    • Frequency:
      • Deviation: 2.5kHz (maximum)
      • Distortion: 5%kHz (maximum)
    • S/N ratio: 40dB (maximum)
    • Harmonic and spurious attenuation: >50dB
    • Current consumption: 300, 30mA
  • Receiver:
    • Sensitivity: 0.33mV at 12dB sinad
    • Selectivity: 50dB (minimum)
    • Squelch sensitivity: 0.25mV (typical)
    • Spurious rejection: 50dB (minimum)
    • Inter modulation rejection: 50dB (minimum)
  • Audio:
    • Output power: 150mW at 16Ω, <10% THD
    • Current consumption: 150/30mA
  • 462.5625 to 467.7125MHz (USA FRS)
  • 462.5625 to 467.7250MHz (Canada GMRS)
  • 446.00625 to 446.09375MHz (Europe PMR)
  • Spacing: 25kHz (USA FRS), 12.5kHz (Europe PMR)
  • Main channel: 01-14 (USA FRS), 01-08 (Europe PMR)
  • CTCSS sub-channels: 00-38
  • RF power: 500mW/1W (ERP)
  • Frequency:
    • Deviation: 2.5kHz (maximum)
    • Distortion: 5%kHz (maximum)
  • S/N ratio: 40dB (maximum)
  • Harmonic and spurious attenuation: >50dB
  • Current consumption: 300, 30mA
  • Deviation: 2.5kHz (maximum)
  • Distortion: 5%kHz (maximum)
  • Sensitivity: 0.33mV at 12dB sinad
  • Selectivity: 50dB (minimum)
  • Squelch sensitivity: 0.25mV (typical)
  • Spurious rejection: 50dB (minimum)
  • Inter modulation rejection: 50dB (minimum)
  • Output power: 150mW at 16Ω, <10% THD
  • Current consumption: 150/30mA
  • Rechargeable battery, earphone, AC adapter, base charge, belt clip, user's manual
