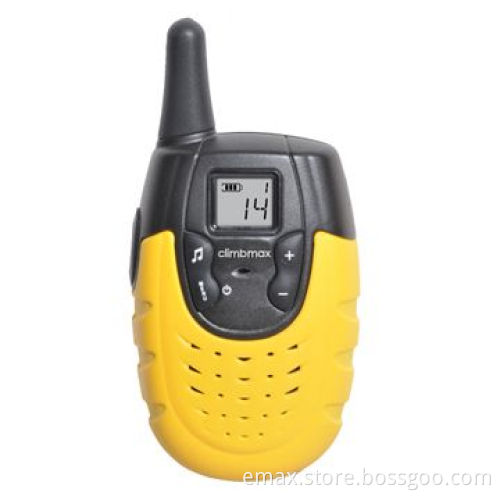

Walkie-talkie with 14 Channels

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

General features:

Specification:

Rated voltages: 3.6 to 4.5V DC
Modulation mode: FM modulation
Intermediate frequency:
- First intermediate frequency: 21.7MHz
- Second intermediate frequency: 450MHz
Total power consumption: 1.8W
Receiver:
- The sensitivity for 12dB: -118dBm
- Audio output: 0.25W 8Ω (5% distortion)
- Audio response range: 300 to 3200Hz
Transmitter:
- Output power: maximum 100mW/4.5V DC
- Frequency error: 0.00025%
Current consumption:
- Transmitting: <450mA
- Receiving: <150mA
- Standby: <45mA

14 channels

1W output power

38 groups of CTCSS

5 call tone selectable

VOX function

Channel scan function

Monitor function

Key lock function

Rated voltages: 3.6 to 4.5V DC

Modulation mode: FM modulation

Intermediate frequency:

Total power consumption: 1.8W

Receiver:

Transmitter:

Current consumption:

First intermediate frequency: 21.7MHz

Second intermediate frequency: 450MHz

The sensitivity for 12dB: -118dBm

Audio output: 0.25W 8Ω (5% distortion)

Audio response range: 300 to 3200Hz

Output power: maximum 100mW/4.5V DC

Frequency error: 0.00025%

Transmitting: <450mA

Receiving: <150mA

Standby: <45mA
