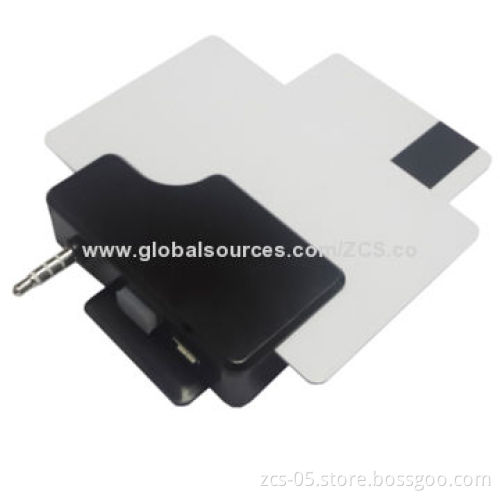

EMV L1/2-certified MSR+IC Mobile Credit Card Reader, 3DESDUKPT Encrypted,Replaceable Lithium Battery

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, PayPal, Western Union

Product Description

Reference standards: magnetic card ISO 7811, AMMVA, CADMV and other formats

IC card ISO-7816 class A, B and C

Swiping speed: 3 to 60 inches/second and bi-directional

Tracking position: 1 and 2

Card thickness: 0.76 to 1.2mm

Interface: audio headphone jack

Compatibility:

System: iOS series, Android and WP7/WP8
Phone: HTC, Samsung, Motorola, Coolpad, Hedy, iPhone/iPod/iPad, Microsoft Windows phone series

Operating temperature: 0 to 55°C (32 to 131°F), non-condensing

Storage temperature: -30 to 70°C (-22 to 158°F), non-condensing

LED lights are from left to right, IC power, insert IC and charge indicator

IC power indicator light on means IC card is powered on

Insert IC indicator light on means IC card is inserted correctly

Charge indicator lights flashing, which means charging, lights stop flashing, which means charging is complete

Working power: Li-ion battery power

Battery capacity: 120/200mAh

Battery lifespan: >500 cycles

Rated voltage: 3V DC

Idle current: 0.01μA

Standby current: 4.5mA

Charging current: 100mA

Working current: magnetic card 7mA

IC card: 25mA

Working hours: continuous operation of IC card for >6 hours

Charging time: <3 hours

Relative humidity: maximum 95% RH non-condensing and dry storage

Operating lifespan: magnetic header approximately 300,000 passes

IC header: approximately 100,000 passes

Dimensions: 60 x 40 x 17mm

Weight: 60g

Read error rate: <1%

Standards: FCC, CE and EMV 2000

System: iOS series, Android and WP7/WP8

Phone: HTC, Samsung, Motorola, Coolpad, Hedy, iPhone/iPod/iPad, Microsoft Windows phone series
