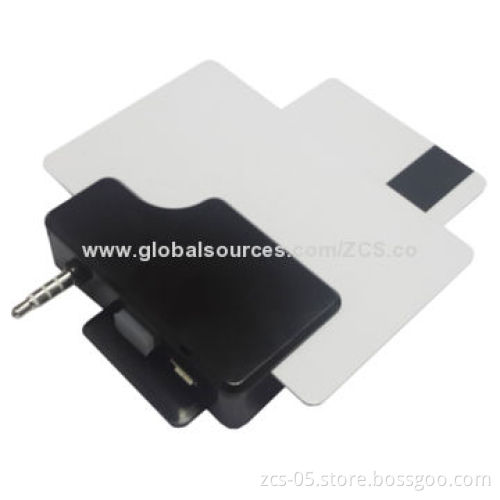

Mobile Smart IC Credit Card Reader, Supports Chip and Magnetic Stripe Card Reader, Android and iOS

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, PayPal, Western Union

Product Description

Reference standards: magnetic card ISO 7811, AMMVA, CADMV and other format

IC card ISO-7816 class A, B and C

Swipe speed: 3 to 60 inches/second and bi-directional

Track position: 1 and 2

Card thickness: 0.76 to 1.2mm

Interface: audio headphones jack

Compatibility: system iOS series, Android, WP7/WP8 phone, HTC, Samsung, Motorola, CoolPad, Hedy, iPhone/iPod/iPad, Microsoft's Windows phone series

Standards: FCC, CE and EMV 2000

Operating temperature: 0 to 55°C (32 to 131°F) non-condensing

Storage temperature: -30 to 70°C (-22 to 158°F) non-condensing

LED lights from left to right, IC power indicator, insert IC indicator and charge indicator

IC power indicator light on means IC card is powered on

Insert IC indicator light on means IC card inserted correctly

Charging indicator light flashing, which means in charge, lights stop flashing, which means charging is complete

Working power: Li-ion battery power

Battery capacity: 120/200mAh

Battery lifespan: >500 cycles

Rated voltage: 3V DC

Idle current: 0.01μA

Standby current: 4.5mA

Charging current: 100mA

Working current: magnetic card 7mA

IC card: 25mA

Working hours: can continuous operation IC card for >6 hours

Charging time: <3 hours

Relative humidity: maximum 95% RH non-condensing and dry storage

Operating lifespan: magnetic header approximately 300,000 passes

IC header: approximately 100,000 passes

Dimensions: 60 x 40 x 17mm

Weight: 60g

Read error rate: <1%
