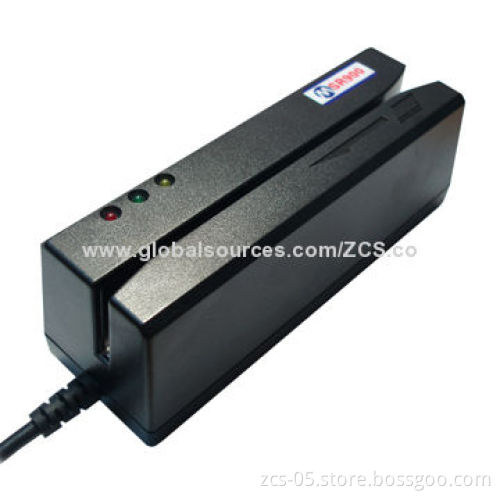

MSR900 USB Smallest Magnetic Encoder and Decoder, Windows 7, Windows 8, Windows XP

MSR900 USB Smallest Magnetic Encoder and Decoder, Windows 7, Windows 8, Windows XP

Get Latest Price

Payment Type:: T/T, PayPal, Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, PayPal, Western Union

Product Description

Original factory manufacturer: magnetic card reader/writer, magnetic head, magnetic module, mini123, mx5, RFID, mag strip, RFID combo and msr206

100% compatible with msr805 and msr900

Features:

Complied with ISO formats
Reading/writing drivers licenses
Read/write high and low coercive (300 to 4000 Oe)
LED provides operational status
Writes any track combinations of 210 and 75 bpi data density
Program software for Windows 98/Me/XP and Vista
Manual swipe to read or write card with RS-232/USB output
Writing and verifying data on single, dual, or triple track in one swipe
+24V DC/2.5A maximum external power adapter attached

Specifications:

Electrical power requirements: +24V DC ± 5%
Consumption typical 350mA maximum 600mA plus for each writing track
Power supply external switching power: 2.5A/24V
Communication standard USB cable
Ripple 50MVP-p or less
Dielectric strength 500V DC for 1 minute
Dimensions: (L) 150 x (W) 50 x (H) 53mm
Approximate: 0.7kg

Performance:

Read card track1/track2 and track3
Bit per density 210, 75/210 and 210 bpi
Coercive force read/write 300 to 4000 Oe mag card
Card thickness: 0.76 to 1.2mm
Read speed STD card jitter ± 15% A 60%
Writing speed: 5-30IPS
Write jitter interval: <±10% and sub-interval <±12%
Error rate read: <0.5% and write <0.8%
Head life: minimum 1000K swipes for both read/write head

Mechanical:

Body material: ABS 94V-0
Weight approximate: 0.7kg
Swipe manual and single direction

Environments:

Operation: -10 to 55°C and 10 to 85% humidity
Storage: -30 to 70°C, and 10 to 90% humidity

Safety approval: rating FCC class B, CE class B, UL, cUL and RoHS

Packaging:

MSR900
Software CD
Power adapter
USB cable
1-clean card
10 black magnetic stripe cards (4000 Oe)
English user's manual

Complied with ISO formats

Reading/writing drivers licenses

Read/write high and low coercive (300 to 4000 Oe)

LED provides operational status

Writes any track combinations of 210 and 75 bpi data density

Program software for Windows 98/Me/XP and Vista

Manual swipe to read or write card with RS-232/USB output

Writing and verifying data on single, dual, or triple track in one swipe

+24V DC/2.5A maximum external power adapter attached

Electrical power requirements: +24V DC ± 5%

Consumption typical 350mA maximum 600mA plus for each writing track

Power supply external switching power: 2.5A/24V

Communication standard USB cable

Ripple 50MVP-p or less

Dielectric strength 500V DC for 1 minute

Dimensions: (L) 150 x (W) 50 x (H) 53mm

Approximate: 0.7kg

Read card track1/track2 and track3

Bit per density 210, 75/210 and 210 bpi

Coercive force read/write 300 to 4000 Oe mag card

Card thickness: 0.76 to 1.2mm

Read speed STD card jitter ± 15% A 60%

Writing speed: 5-30IPS

Write jitter interval: <±10% and sub-interval <±12%

Error rate read: <0.5% and write <0.8%

Head life: minimum 1000K swipes for both read/write head

Body material: ABS 94V-0

Weight approximate: 0.7kg

Swipe manual and single direction

Operation: -10 to 55°C and 10 to 85% humidity

Storage: -30 to 70°C, and 10 to 90% humidity

MSR900

Software CD

Power adapter

USB cable

1-clean card

10 black magnetic stripe cards (4000 Oe)

English user's manual
