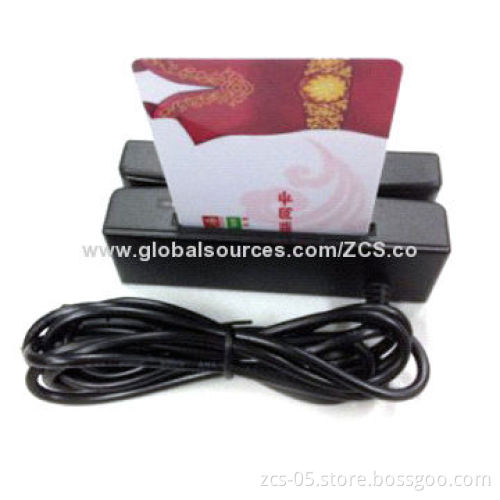

USB IC Card Reader, Contact IC Card Magnetic Card and PSAM Card, 12 Months Warranty

USB IC Card Reader, Contact IC Card Magnetic Card and PSAM Card, 12 Months Warranty

Get Latest Price

Payment Type:: T/T, PayPal, Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, PayPal, Western Union

Product Description

Features:

Can read and write variety of memory card and supports T: 0 and T: 1 communication protocol CPU card
Supports function of SAM card operation
Uses USB to communication with PC
Provides many development platform interface function and application example

Specifications:

IC card supports: AT24C01A/24C02/24C04/24C08/24C16/AT24 C64, SLE4432/4442, SLE4418/4428, ISSI 24C01A/16, ISO7816-(1-4) (T: 1 and T: 0)
Communications: USB2.0 and really Plug-and-play
Swipe speed: 3 to 60 inches/second
Maximum power consumption: 100mW
Temperature:
- Humidity: 90% RH (non-condensing)
Anti-static interference: 15kV
Magnetic interference resistance: 19 Oersted
Vibration resistance amplitude 0.35mm, frequency 10 to 55Hz, 3-axis directions sweep vibration insulation resistance hot and humid circumstances (40°C, 95% RH) insulation resistance should not be less than 5MΩ
Dimensions: 100 x 34 x 30mm
Weight: 85g
Commercial grade: -20 to 60°C
Industrial grade: -20 to 60°C

Applications:

Widely used in industry and commerce, telecommunications, taxation, banking, insurance, health care and variety of charges, stored value and query management system

Can read and write variety of memory card and supports T: 0 and T: 1 communication protocol CPU card

Supports function of SAM card operation

Uses USB to communication with PC

Provides many development platform interface function and application example

IC card supports: AT24C01A/24C02/24C04/24C08/24C16/AT24 C64, SLE4432/4442, SLE4418/4428, ISSI 24C01A/16, ISO7816-(1-4) (T: 1 and T: 0)

Communications: USB2.0 and really Plug-and-play

Swipe speed: 3 to 60 inches/second

Maximum power consumption: 100mW

Temperature:

Humidity: 90% RH (non-condensing)

Anti-static interference: 15kV

Magnetic interference resistance: 19 Oersted

Vibration resistance amplitude 0.35mm, frequency 10 to 55Hz, 3-axis directions sweep vibration insulation resistance hot and humid circumstances (40°C, 95% RH) insulation resistance should not be less than 5MΩ

Dimensions: 100 x 34 x 30mm

Weight: 85g

Commercial grade: -20 to 60°C

Industrial grade: -20 to 60°C

Humidity: 90% RH (non-condensing)

Widely used in industry and commerce, telecommunications, taxation, banking, insurance, health care and variety of charges, stored value and query management system
