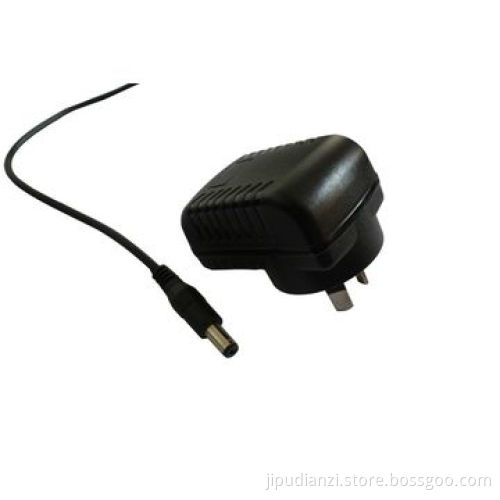

OEM Wall Mounted UL listed SAA/CE AC/DC Adapter, 5/12/24/36VNew
  • OEM Wall Mounted UL listed SAA/CE AC/DC Adapter, 5/12/24/36VNew
  • OEM Wall Mounted UL listed SAA/CE AC/DC Adapter, 5/12/24/36VNew
OEM Wall Mounted UL listed SAA/CE AC/DC Adapter, 5/12/24/36VNew
OEM Wall Mounted UL listed SAA/CE AC/DC Adapter, 5/12/24/36VNew

OEM Wall Mounted UL listed SAA/CE AC/DC Adapter, 5/12/24/36VNew

Get Latest Price
Payment Type:
T/T or Western Union
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T or Western Union
Product Description
Product Description
  • Specifications:
    • Inputs: AC 100-240V 50/60Hz
    • Output: 36V/0.2A/7.2W
    • Plug option: AU/EU/UK/US/AUS/CN
    • Inlet type: C6/C8/C14
    • AC/DC cable length: 1.2m/1.5m/1.8m
    • Size: 98*44*28mm
    • DC Jack size: 5.5*2.5mm/5.5*2.1mm
    • MOQ: 500pcs
    • Package: white box + carton
    • Delivery: 3-5workdays for samples
    • Warranty: 2 years
    • Certification: UL/CUL/CE/CB/FCC/GS/TUV/PSE/RoHS/SAA
  • Applications:
    • CCTV security/surveillance/control system
    • Network Telecom communicating system
    • LED, LCD equipment adapter
    • Medical, construction electrical devices
  • Features:
    • Universal input 100-240V AC 50/60Hz
    • High efficiency
    • Short-circuit protection
    • Over-voltage protection
    • Over-current protection
    • Lightweight & compact
  • Environmental specifications:
    • Operating temperatures: 0-40°C
    • Storage temperatures: -10-70°C
    •  Humidity range: 5 to 95% non-condensing
  • Safety specifications:
    • Construction: Class II Insulation SELV output
  • EMC specification:
    • FCC part 15, subpart B
    • EMC directive: EN55022; EN55024; EN61000-3-2; EN61000-3-3
  • Mechanical specifications:
    • Weight: 250g
    • Dimensions: 98*47*32mm
  • Electrical specifications:
    • Output voltage: 5-36V DC
    • Output current: 100-3,000mA
    • Power: 12-36W
    • Ripple & noise: 1% of output voltage
  • Payment & delivery:
    • Packaging detail: Inner color box or standard industrial packaging into an outer export carton
    • Delivery detail: 7-25 days (depends on the quantity) after payment confirmed
  • Why choose us:
    • More than 80 sets of advanced connectors & assembly cables machines and testing equipment
    • Large production capacity, short delivery
    • Strict QC checking before delivery
  • Inputs: AC 100-240V 50/60Hz
  • Output: 36V/0.2A/7.2W
  • Plug option: AU/EU/UK/US/AUS/CN
  • Inlet type: C6/C8/C14
  • AC/DC cable length: 1.2m/1.5m/1.8m
  • Size: 98*44*28mm
  • DC Jack size: 5.5*2.5mm/5.5*2.1mm
  • MOQ: 500pcs
  • Package: white box + carton
  • Delivery: 3-5workdays for samples
  • Warranty: 2 years
  • Certification: UL/CUL/CE/CB/FCC/GS/TUV/PSE/RoHS/SAA
  • CCTV security/surveillance/control system
  • Network Telecom communicating system
  • LED, LCD equipment adapter
  • Medical, construction electrical devices
  • Universal input 100-240V AC 50/60Hz
  • High efficiency
  • Short-circuit protection
  • Over-voltage protection
  • Over-current protection
  • Lightweight & compact
  • Operating temperatures: 0-40°C
  • Storage temperatures: -10-70°C
  •  Humidity range: 5 to 95% non-condensing
  • Construction: Class II Insulation SELV output
  • FCC part 15, subpart B
  • EMC directive: EN55022; EN55024; EN61000-3-2; EN61000-3-3
  • Weight: 250g
  • Dimensions: 98*47*32mm
  • Output voltage: 5-36V DC
  • Output current: 100-3,000mA
  • Power: 12-36W
  • Ripple & noise: 1% of output voltage
  • Packaging detail: Inner color box or standard industrial packaging into an outer export carton
  • Delivery detail: 7-25 days (depends on the quantity) after payment confirmed
  • More than 80 sets of advanced connectors & assembly cables machines and testing equipment
  • Large production capacity, short delivery
  • Strict QC checking before delivery
