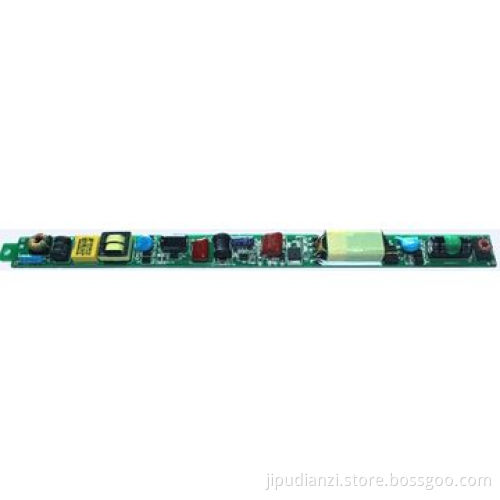

LED drivers for LED tubes and panel lights

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T or Western Union

Product Description

Technical specifications:

Features:

Input voltages: 90-264V AC, 47-63Hz

Output voltages: 27-65V

Output currents: 160-500mA

Power: 8-20W (max)

Dimensions (L x W x H): 168*18*11/182*18*11mm

Conversion efficiency: up to 0.95

Dielectric strength: 2kV AC

Leakage current: <0.75mA,60 seconds

MTBF calculation: up to 50,000 hours lifespan

Type: naked PCB

Worldwide AC input/full range

High power factor

High efficiency and reliability

Protections: short circuit, over load, over voltage

Cooling by free air convection

Built-in constant current limiting circuit with adjustable OCP level

Suitable for LED indoor lighting

Compliance to worldwide safety regulations for lighting

2-year warranty

Samples can be ready in 2 working days

Lead time for massive order 5,000pcs is 15 days

OEM/ODM orders are welcome
