Power adapter, factory supply, 5V, 10A

Get Latest Price

Payment Type:: Telegraphic Transfer (TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

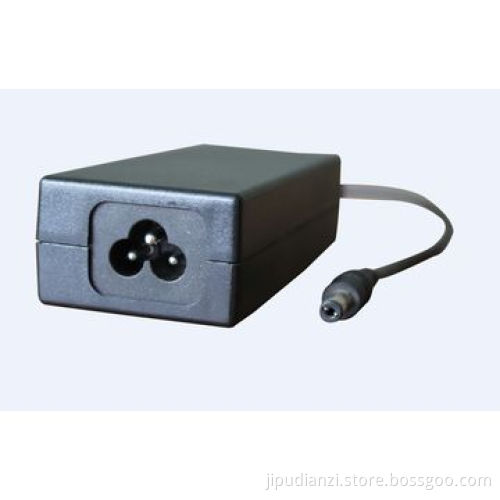

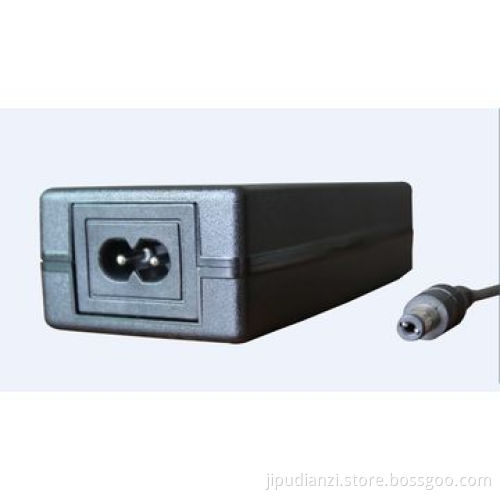

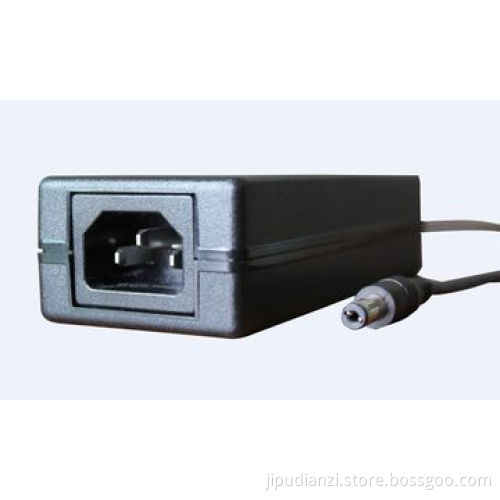

100W power adapter (desktop)

Product features

Lightweight, compact design
RoHS power supply, fully conform to the requirements of the energy star
High power density
Super safe design, perfect protection function

Scope of application

Mobile device
LED lighting products
Audio and video products
POS machine
Security equipment
Household appliances

Green mode

Meet CEC regulations and RoHS directive-compliant
No load power consumption less than 0.1W

Reliability

Average time between failures
At 25 ℃ ambient temperature, the maximum working load
Average time between failures, 5,000 hours

Input

Input voltage: 90V-264VAC
Frequency: 47-50/60-63HZ
Input current: 1.8A (max) 100/240VAC
Surge current: at 100VAC 30A max at 240VAC 60A Max
Leakage current: 0.25mA max

Output

Over voltage protection
Over current protection: 110-200% rated load, have the function of automatic recovery
Short circuit protection
Working temperature: 0℃-+ 40 ℃
Storage temperature: 20℃-+ 60℃
Humidity enrichment conditions, humidity 5% to 95%

Product list

Model
Voltage (VV)
Current (amps) A
Power (W )
Ripple wave
Efficiency
JP100-XXXYYYY
- 5.0-8.9V
- 0-10.0A
- 50W Max
- 100mVp-p
- 80%
JP100-XXXYYYY
- 9.0-13.5V
- 0-7.50A
- 90W Max
- 100mVp-p
- 85%
JP100-XXXYYYY
- 13.6-17.9V
- 0-7.00A
- 100W Max
- 100mVp-p
- 85%
JP100-XXXYYYY
- 18.0-24.0V
- 0-5.60A
- 100W Max
- 100mVp-p
- 85%

Electromagnetic interference

Conduction, radiation test:
- CE: EN55022:2010
- FCC: part 15
Harmonic testing: EN 61000-3-2:2006+A2:2009
Voltage change test: EN 61000-3-3:2008

Electromagnetic compatibility

Static test: EN61000-4-2
Radiation tolerance test: EN61000-4-3
Electronic rapid pulse test: EN61000-4-4
Lightning test: EN61000-4-5
Conduction resistance test: EN61000-4-6
Voltage dip test: EN61000-4-11

UL standards

EN60950-1
UL60950-1

UL certification

CB TUV/GS UL/CUL KC SAA PSE
CE FCC C-TICK

Lightweight, compact design

RoHS power supply, fully conform to the requirements of the energy star

High power density

Super safe design, perfect protection function

Mobile device

LED lighting products

Audio and video products

POS machine

Security equipment

Household appliances

Meet CEC regulations and RoHS directive-compliant

No load power consumption less than 0.1W

Average time between failures

At 25 ℃ ambient temperature, the maximum working load

Average time between failures, 5,000 hours

Input voltage: 90V-264VAC

Frequency: 47-50/60-63HZ

Input current: 1.8A (max) 100/240VAC

Surge current: at 100VAC 30A max at 240VAC 60A Max

Leakage current: 0.25mA max

Over voltage protection

Over current protection: 110-200% rated load, have the function of automatic recovery

Short circuit protection

Working temperature: 0℃-+ 40 ℃

Storage temperature: 20℃-+ 60℃

Humidity enrichment conditions, humidity 5% to 95%

Model

Voltage (VV)

Current (amps) A

Power (W )

Ripple wave

Efficiency

JP100-XXXYYYY

5.0-8.9V
0-10.0A
50W Max
100mVp-p
80%

JP100-XXXYYYY

9.0-13.5V
0-7.50A
90W Max
100mVp-p
85%

JP100-XXXYYYY

13.6-17.9V
0-7.00A
100W Max
100mVp-p
85%

JP100-XXXYYYY

18.0-24.0V
0-5.60A
100W Max
100mVp-p
85%

5.0-8.9V

0-10.0A

50W Max

100mVp-p

80%

9.0-13.5V

0-7.50A

90W Max

100mVp-p

85%

13.6-17.9V

0-7.00A

100W Max

100mVp-p

85%

18.0-24.0V

0-5.60A

100W Max

100mVp-p

85%

Conduction, radiation test:

CE: EN55022:2010
FCC: part 15

Harmonic testing: EN 61000-3-2:2006+A2:2009

Voltage change test: EN 61000-3-3:2008

CE: EN55022:2010

FCC: part 15

Static test: EN61000-4-2

Radiation tolerance test: EN61000-4-3

Electronic rapid pulse test: EN61000-4-4

Lightning test: EN61000-4-5

Conduction resistance test: EN61000-4-6

Voltage dip test: EN61000-4-11

EN60950-1

UL60950-1

CB TUV/GS UL/CUL KC SAA PSE

CE FCC C-TICK
