Product Description

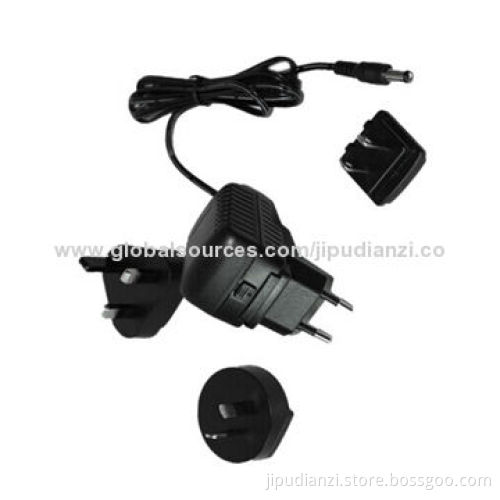

AC adapter with exchangeable AC plugs for USA, EU, UK, AU

High quality, high efficiency, extra safe design

I/P: 100-240V AC, 50/60Hz, O/P: 2.8-24V, 0.1-5A, 1-45W

RoHS, REACH, PAHs, CEC V-compliant

UL, GS, CE, C-TICK, PSE, FCC-approved

Rated input: 100-240V AC, 50/60Hz

Operating range: 90-264V AC, 47-63Hz

Output voltage: available from 2.8V DC to 12V DC

Output current: available from 10 to 1,000mA

Output power: 5W maximum

With interchangeable AC plugs for America, Canada, Europe, United Kingdom, Australia, Japan and more

RoHS, PAHs, REACH, WEEE compliant

6P, NP available

Energy efficiency: CEC V, EUP 2011, MEPS V

Input current: 0.6A maximum, 100/240V AC

Inrush current: 60A maximum, 230V AC at max load

Leakage current: 0.25mA maximum

MTBF: 50K hours at 25'C

LED indicator: optional

Size: 65*36*34.5mm

Safety standard: IEC/EN 60950-1, CSA C22.2, UL60950

Safety approvals: UL/cUL/GS/CE/CB/C-TICK/CCC/PSE/FCC

Protections:

Environmental requirements:

Short circuit protection

Over voltage protection

Over current protection

Operating temperature: 0-40°C

Storage temperature: -20-80°C

Operating relative humidity: 10-90% RH
