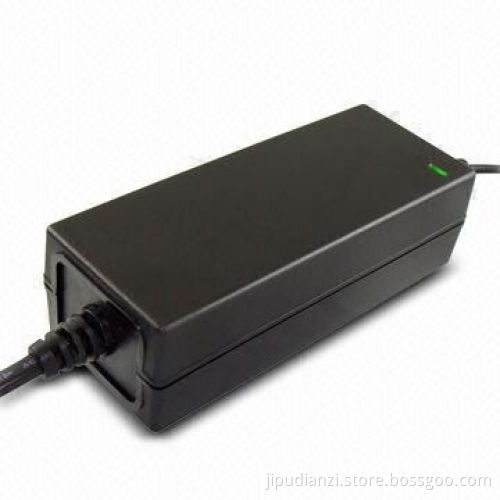

100W Power Adapter, Suitable for Battery Charger
  • 100W Power Adapter, Suitable for Battery Charger
100W Power Adapter, Suitable for Battery Charger

100W Power Adapter, Suitable for Battery Charger

Get Latest Price
Payment Type:
T/T, L/C, Western Union, PayPal
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T, L/C, Western Union, PayPal
Product Description
Product Description
  • Features:
    • Suitable for battery charger
    • Universal AC input full range
    • Protections: short-circuit/overload and over-voltage
    • Two color LED loading indicator
    • Feedback CC mode protection
  • Specifications:
    • Input voltages: 90 to 264V AC
    • Input frequency range: 47 to 63Hz
    • Input current: 0.4A maximum
    • Inrush current: 80A maximum (cold start)
    • Efficiency: ≧65%
    • Hold up time: 10ms minimum at nominal line
    • Output voltage: anywhere output range: 16 to 21V DC
    • Ripple and noise: 2% (p-p maximum)
    • Overload protection: output rated current 5%, constant current limiting, auto-recovery
    • Dielectric withstand: 3000V AC I P-O/P
    • Leakage current: 0.25mA (maximum)
    • Operating temperatures: -20 to +40°C
    • Storage temperatures: -40 to +85°C
    • Protection: OVP/OLP/backfeed and short-circuit
    • Safety standardd: IEC/UL and EN 60950-1, CB
    • EMC standardd: (EN 55022 CISPR22 and FCC part 15) class B, EN 61000-3-2, -3-3, EN 61000-4-2, 3, 4, 5, 6, 8 and 11
    • Standard output connector: DC barrel jack
    • Standard output cable length: UL 2468, #20AWG/5ft
  • FCA015-S24-Z:
    • Output voltaged: 16 to 21V DC
    • Output current range: 0.93 to 0.71A
    • Voltage range: 65 to 100% of Von
    • Maximum output: 15W
  • Notes:
    • Von: Vout at no-load
    • Z = AC inlet type code
    • Z = 8, IEC320 C8
    • Z = U, US plug
    • Z = E, EU plug
    • Z = A, Australian plug
    • Z = B, British plug
    • Z = I, interchangeable plug (IA, IB, IC, IE and IU)
    • Z = N, non-detachable power supply cord type (NA, NU, NE and NB)
  • Suitable for battery charger
  • Universal AC input full range
  • Protections: short-circuit/overload and over-voltage
  • Two color LED loading indicator
  • Feedback CC mode protection
  • Input voltages: 90 to 264V AC
  • Input frequency range: 47 to 63Hz
  • Input current: 0.4A maximum
  • Inrush current: 80A maximum (cold start)
  • Efficiency: ≧65%
  • Hold up time: 10ms minimum at nominal line
  • Output voltage: anywhere output range: 16 to 21V DC
  • Ripple and noise: 2% (p-p maximum)
  • Overload protection: output rated current 5%, constant current limiting, auto-recovery
  • Dielectric withstand: 3000V AC I P-O/P
  • Leakage current: 0.25mA (maximum)
  • Operating temperatures: -20 to +40°C
  • Storage temperatures: -40 to +85°C
  • Protection: OVP/OLP/backfeed and short-circuit
  • Safety standardd: IEC/UL and EN 60950-1, CB
  • EMC standardd: (EN 55022 CISPR22 and FCC part 15) class B, EN 61000-3-2, -3-3, EN 61000-4-2, 3, 4, 5, 6, 8 and 11
  • Standard output connector: DC barrel jack
  • Standard output cable length: UL 2468, #20AWG/5ft
  • Output voltaged: 16 to 21V DC
  • Output current range: 0.93 to 0.71A
  • Voltage range: 65 to 100% of Von
  • Maximum output: 15W
  • Von: Vout at no-load
  • Z = AC inlet type code
  • Z = 8, IEC320 C8
  • Z = U, US plug
  • Z = E, EU plug
  • Z = A, Australian plug
  • Z = B, British plug
  • Z = I, interchangeable plug (IA, IB, IC, IE and IU)
  • Z = N, non-detachable power supply cord type (NA, NU, NE and NB)
