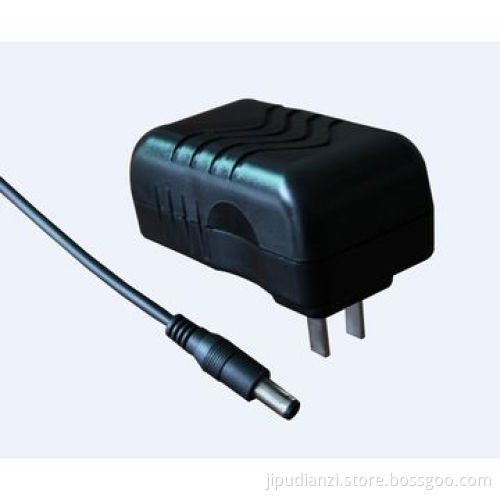

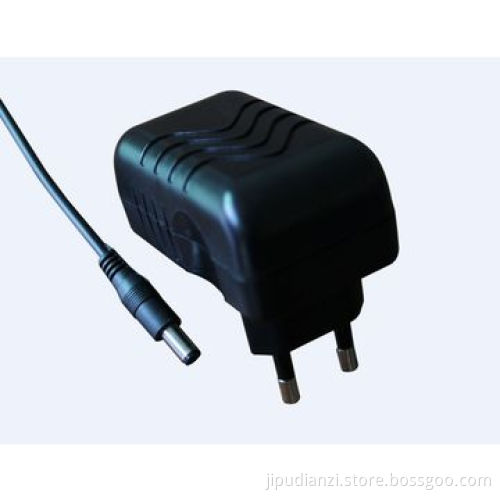

12V/2.5A AC/DC Power Adapter, Transformer, with UL/GS Certificates
  • 12V/2.5A AC/DC Power Adapter, Transformer, with UL/GS Certificates
  • 12V/2.5A AC/DC Power Adapter, Transformer, with UL/GS Certificates
  • 12V/2.5A AC/DC Power Adapter, Transformer, with UL/GS Certificates
  • 12V/2.5A AC/DC Power Adapter, Transformer, with UL/GS Certificates
  • 12V/2.5A AC/DC Power Adapter, Transformer, with UL/GS Certificates
  • 12V/2.5A AC/DC Power Adapter, Transformer, with UL/GS Certificates
  • 12V/2.5A AC/DC Power Adapter, Transformer, with UL/GS Certificates
  • 12V/2.5A AC/DC Power Adapter, Transformer, with UL/GS Certificates
12V/2.5A AC/DC Power Adapter, Transformer, with UL/GS Certificates
12V/2.5A AC/DC Power Adapter, Transformer, with UL/GS Certificates
12V/2.5A AC/DC Power Adapter, Transformer, with UL/GS Certificates
12V/2.5A AC/DC Power Adapter, Transformer, with UL/GS Certificates
12V/2.5A AC/DC Power Adapter, Transformer, with UL/GS Certificates
12V/2.5A AC/DC Power Adapter, Transformer, with UL/GS Certificates
12V/2.5A AC/DC Power Adapter, Transformer, with UL/GS Certificates
12V/2.5A AC/DC Power Adapter, Transformer, with UL/GS Certificates

12V/2.5A AC/DC Power Adapter, Transformer, with UL/GS Certificates

Get Latest Price
Payment Type:
Telegraphic Transfer (TT, T/T)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Telegraphic Transfer (TT,T/T)
Product Description
Product Description
  • 30W power adapter (desktop)
  • Product features:
    • Lightweight, compact design
    • RoHS power supply, fully conform to the requirements of the energy star
    • High power density
    • Super safe design, perfect protection function
  • Scope of application:
    • Mobile device
    • LED lighting products
    • Audio and video products
    • ADSL
    • STB
    • Household appliances
  • Green mode:
    • Meet CEC regulations and RoHS compliance
    • No load power consumption: less than 0.1W
  • Reliability:
    • Average time between failures
    • At 25°C ambient temperature, the maximum working load
    • Average time between failures, 5,000 hours
  • Input:
    • Input voltage: 90-264V AC
    • Frequency: 47-50/60-63Hz
    • Input current: 1.0A (maximum) 100/240V AC
    • Surge current: at 100V AC/30A maximum at 240V AC/60A maximum
    • Leakage current: 0.25mA maximum
  • Output:
    • Over voltage protection
    • Over current protection: 110-200% rated load, with function of automatic recovery
    • Short-circuit protection
    • Working temperature: 0-+40°C
    • Storage temperature: 20-+ 60°C
    • Humidity enrichment conditions, humidity of 5 to 95%
  • Lightweight, compact design
  • RoHS power supply, fully conform to the requirements of the energy star
  • High power density
  • Super safe design, perfect protection function
  • Mobile device
  • LED lighting products
  • Audio and video products
  • ADSL
  • STB
  • Household appliances
  • Meet CEC regulations and RoHS compliance
  • No load power consumption: less than 0.1W
  • Average time between failures
  • At 25°C ambient temperature, the maximum working load
  • Average time between failures, 5,000 hours
  • Input voltage: 90-264V AC
  • Frequency: 47-50/60-63Hz
  • Input current: 1.0A (maximum) 100/240V AC
  • Surge current: at 100V AC/30A maximum at 240V AC/60A maximum
  • Leakage current: 0.25mA maximum
  • Over voltage protection
  • Over current protection: 110-200% rated load, with function of automatic recovery
  • Short-circuit protection
  • Working temperature: 0-+40°C
  • Storage temperature: 20-+ 60°C
  • Humidity enrichment conditions, humidity of 5 to 95%
