Desktop AC/DC Switching Adapter with CEC LV Efficiency Level and 120 to 150W Output Power
  • Desktop AC/DC Switching Adapter with CEC LV Efficiency Level and 120 to 150W Output Power
  • Desktop AC/DC Switching Adapter with CEC LV Efficiency Level and 120 to 150W Output Power
  • Desktop AC/DC Switching Adapter with CEC LV Efficiency Level and 120 to 150W Output Power
  • Desktop AC/DC Switching Adapter with CEC LV Efficiency Level and 120 to 150W Output Power
  • Desktop AC/DC Switching Adapter with CEC LV Efficiency Level and 120 to 150W Output Power
  • Desktop AC/DC Switching Adapter with CEC LV Efficiency Level and 120 to 150W Output Power
  • Desktop AC/DC Switching Adapter with CEC LV Efficiency Level and 120 to 150W Output Power
  • Desktop AC/DC Switching Adapter with CEC LV Efficiency Level and 120 to 150W Output Power
Desktop AC/DC Switching Adapter with CEC LV Efficiency Level and 120 to 150W Output Power
Desktop AC/DC Switching Adapter with CEC LV Efficiency Level and 120 to 150W Output Power
Desktop AC/DC Switching Adapter with CEC LV Efficiency Level and 120 to 150W Output Power
Desktop AC/DC Switching Adapter with CEC LV Efficiency Level and 120 to 150W Output Power
Desktop AC/DC Switching Adapter with CEC LV Efficiency Level and 120 to 150W Output Power
Desktop AC/DC Switching Adapter with CEC LV Efficiency Level and 120 to 150W Output Power
Desktop AC/DC Switching Adapter with CEC LV Efficiency Level and 120 to 150W Output Power
Desktop AC/DC Switching Adapter with CEC LV Efficiency Level and 120 to 150W Output Power

Desktop AC/DC Switching Adapter with CEC LV Efficiency Level and 120 to 150W Output Power

Get Latest Price
Payment Type:
Telegraphic Transfer (TT, T/T)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Telegraphic Transfer (TT,T/T)
Product Description
Product Description

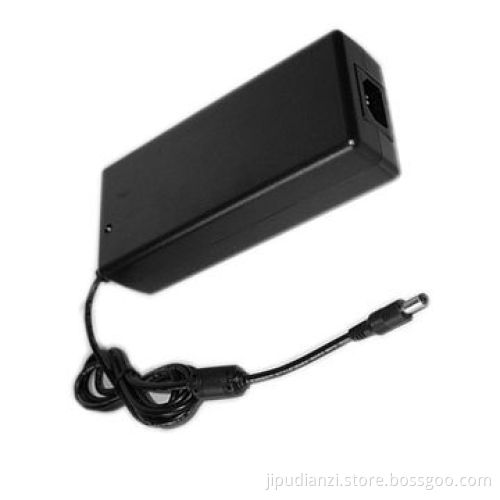

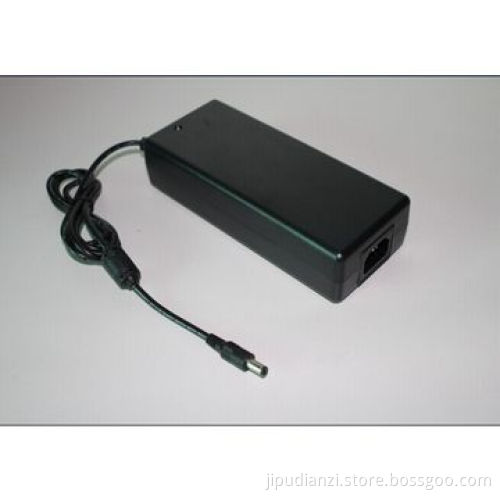

  • 100W power adapter (desktop)
  • Product features
    • Lightweight, compact design
    • RoHS power supply, fully conform to the requirements of the energy star
    • High power density
    • Super safe design, perfect protection function
    • Scope of application
    • Mobile device
    • LED lighting products
    • Audio and video products
    • POS machine
    • Security equipment
    • Household appliances
  • Greenmode
    • Meet CEC regulations & RoHS compliance
    • No load power consumption less than 0.1W
  •  Reliability
    • The average time between failures
    • At 25deg.C ambient temperature, the maximum working load
    • The average time between failures, 5,000 hours
  •  The input:
    • The input voltage range: 90V~264V AC
    • Frequency range: 47~50/60~63Hz
    • Input current: 1.8A (max) 100/240V AC
    • Surge current: AT 100V AC 30A max at 240V AC 60A max
    • Leakage current: 0.25mA max
  • The output
    • Over voltage protection
    • Over current protection: 110 ~ 200% rated load, have the function of automatic recovery
    • Short circuit protection
    • Working temperature range: 0  to + 40deg.C
    • Storage temperature range: 20 ℃ ~ + 60deg.C
    • Humidity enrichment conditions, humidity range: 5% to 95%
  • Lightweight, compact design
  • RoHS power supply, fully conform to the requirements of the energy star
  • High power density
  • Super safe design, perfect protection function
  • Scope of application
  • Mobile device
  • LED lighting products
  • Audio and video products
  • POS machine
  • Security equipment
  • Household appliances
  • Meet CEC regulations & RoHS compliance
  • No load power consumption less than 0.1W
  • The average time between failures
  • At 25deg.C ambient temperature, the maximum working load
  • The average time between failures, 5,000 hours
  • The input voltage range: 90V~264V AC
  • Frequency range: 47~50/60~63Hz
  • Input current: 1.8A (max) 100/240V AC
  • Surge current: AT 100V AC 30A max at 240V AC 60A max
  • Leakage current: 0.25mA max
  • Over voltage protection
  • Over current protection: 110 ~ 200% rated load, have the function of automatic recovery
  • Short circuit protection
  • Working temperature range: 0  to + 40deg.C
  • Storage temperature range: 20 ℃ ~ + 60deg.C
  • Humidity enrichment conditions, humidity range: 5% to 95%
