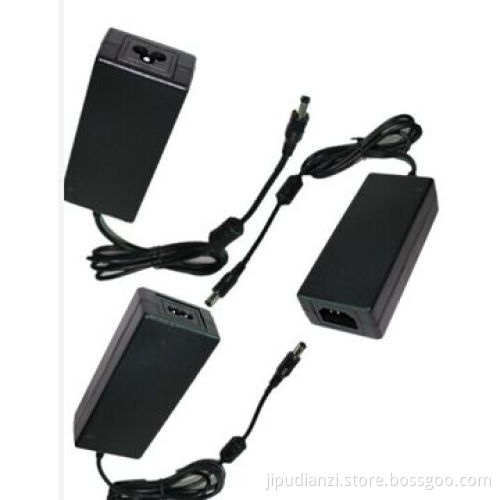

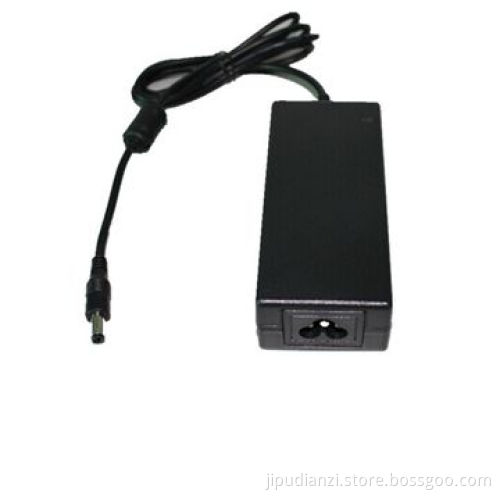

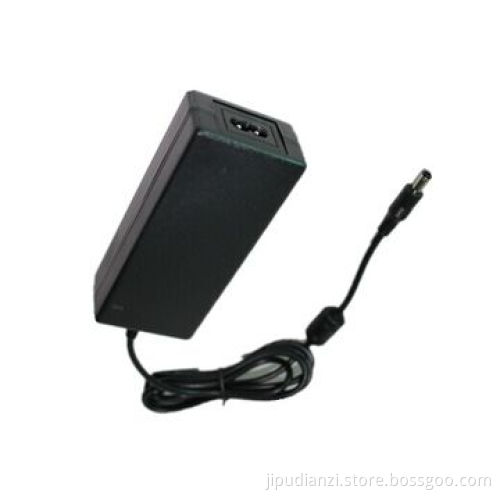

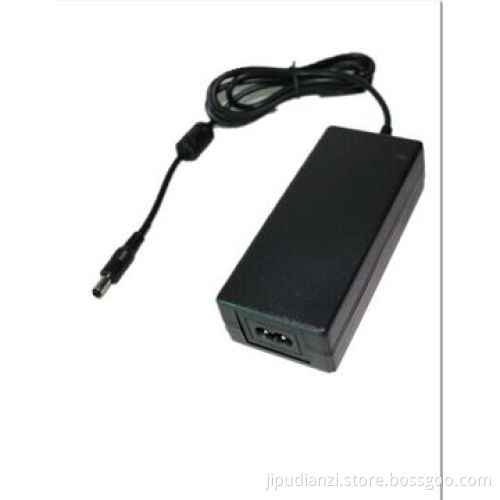

65W LED Switching power supply

Get Latest Price

Payment Type:: Telegraphic Transfer in Advance (Advance TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Features:

Lightweight, compact design
ROHS power supply, fully conform to the requirements of the energy star
High power density
Super safe design, perfect protection function

Scope of applications:

Mobile device
LED lighting products
Audio and video products
POS machine
Security equipment
Household appliances

Green mode:

Meet CEC regulations and RoHS compliance
No load power consumption: less than 0.1W

Reliability:

The average time between failures
At 25℃ ambient temperature, the maximum working load
The average time between failures, 5,000h

Product list:

The input voltage: 90-264V AC
Frequency: 47-50/60-63Hz
Input current: 1.5A (maximum), 100/240V AC
Surge current: at 100V AC, 30A maximum at 240V AC 60A maximum
Leakage current: 0.25mA maximum

The output:

Over voltage protection
Over current protection: 110-200% rated load, have the function of automatic recovery
Short circuit protection
Working temperature 0-+40℃
Storage temperature: 20-+60℃
Humidity enrichment conditions, humidity 5 to 95%

Product list:

Model: JP65-XXXYYYY
- Voltage: 3.0-5.9V
- Current: 0-6.0A
- Power: 30W maximum
- Ripple wave: 100mVp-p
- Efficiency: 75%
Model: JP65-XXXYYYY
- Voltage: 6.0-8.9V
- Current: 0-5.0A
- Power: 45W maximum
- Ripple wave: 100mVp-p
- Efficiency: 85%
Model: JP65-XXXYYYY
- Voltage: 9.0-13.5V
- Current: 0-5.0A
- Power: 60W maximum
- Ripple wave: 100mVp-p
- Efficiency: 85%
Model: JP65-XXXYYYY
- Voltage: 13.6-17.9V
- Current: 0-4.8A
- Power: 65W maximum
- Ripple wave: 100mVp-p
- Efficiency: 85%
Model: JP65-XXXYYYY
- Voltage: 18.0-24.0V
- Current: 0-3.6A
- Power: 65W maximum
- Ripple wave: 100mVp-p
- Efficiency: 85%

Electromagnetic interference:

Conduction, radiation test: CE: EN55022:2010, FCC: Part 15
Harmonic testing: EN 61000-3-2:2006+A2:2009
Voltage change test: EN 61000-3-3:2008

Electromagnetic compatibility:

Static test: EN61000-4-2
Radiation tolerance test: EN61000-4-3
Electronic rapid pulse test: EN61000-4-4
Lightning test: EN61000-4-5
The conduction resistance test: EN61000-4-6
Voltage dip test: EN61000-4-11

UL standards: EN60950-1,UL60950-1

UL certifications: CB, TUV/GS, UL/CUL, KC, SAA, PSE, CE, FCC C-TICK

Lightweight, compact design

ROHS power supply, fully conform to the requirements of the energy star

High power density

Super safe design, perfect protection function

Mobile device

LED lighting products

Audio and video products

POS machine

Security equipment

Household appliances

Meet CEC regulations and RoHS compliance

No load power consumption: less than 0.1W

The average time between failures

At 25℃ ambient temperature, the maximum working load

The average time between failures, 5,000h

The input voltage: 90-264V AC

Frequency: 47-50/60-63Hz

Input current: 1.5A (maximum), 100/240V AC

Surge current: at 100V AC, 30A maximum at 240V AC 60A maximum

Leakage current: 0.25mA maximum

Over voltage protection

Over current protection: 110-200% rated load, have the function of automatic recovery

Short circuit protection

Working temperature 0-+40℃

Storage temperature: 20-+60℃

Humidity enrichment conditions, humidity 5 to 95%

Model: JP65-XXXYYYY

Voltage: 3.0-5.9V
Current: 0-6.0A
Power: 30W maximum
Ripple wave: 100mVp-p
Efficiency: 75%

Model: JP65-XXXYYYY

Voltage: 6.0-8.9V
Current: 0-5.0A
Power: 45W maximum
Ripple wave: 100mVp-p
Efficiency: 85%

Model: JP65-XXXYYYY

Voltage: 9.0-13.5V
Current: 0-5.0A
Power: 60W maximum
Ripple wave: 100mVp-p
Efficiency: 85%

Model: JP65-XXXYYYY

Voltage: 13.6-17.9V
Current: 0-4.8A
Power: 65W maximum
Ripple wave: 100mVp-p
Efficiency: 85%

Model: JP65-XXXYYYY

Voltage: 18.0-24.0V
Current: 0-3.6A
Power: 65W maximum
Ripple wave: 100mVp-p
Efficiency: 85%

Voltage: 3.0-5.9V

Current: 0-6.0A

Power: 30W maximum

Ripple wave: 100mVp-p

Efficiency: 75%

Voltage: 6.0-8.9V

Current: 0-5.0A

Power: 45W maximum

Ripple wave: 100mVp-p

Efficiency: 85%

Voltage: 9.0-13.5V

Current: 0-5.0A

Power: 60W maximum

Ripple wave: 100mVp-p

Efficiency: 85%

Voltage: 13.6-17.9V

Current: 0-4.8A

Power: 65W maximum

Ripple wave: 100mVp-p

Efficiency: 85%

Voltage: 18.0-24.0V

Current: 0-3.6A

Power: 65W maximum

Ripple wave: 100mVp-p

Efficiency: 85%

Conduction, radiation test: CE: EN55022:2010, FCC: Part 15

Harmonic testing: EN 61000-3-2:2006+A2:2009

Voltage change test: EN 61000-3-3:2008

Static test: EN61000-4-2

Radiation tolerance test: EN61000-4-3

Electronic rapid pulse test: EN61000-4-4

Lightning test: EN61000-4-5

The conduction resistance test: EN61000-4-6

Voltage dip test: EN61000-4-11
