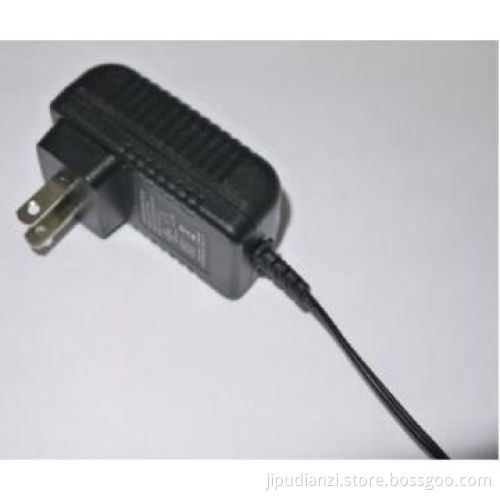

12W Switched Mode AC/DC 12V Power Supply
  • 12W Switched Mode AC/DC 12V Power Supply
  • 12W Switched Mode AC/DC 12V Power Supply
12W Switched Mode AC/DC 12V Power Supply
12W Switched Mode AC/DC 12V Power Supply

12W Switched Mode AC/DC 12V Power Supply

Payment Type:
T/T or Western Union
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T or Western Union
Product Description
Product Description
  • Plug-in main connectors: US/EU/JP/UK/AU/EK/CN
  • Input conditions: 100 to 240V AC, 50/60Hz
  • Input rated voltage: 100 to 240V AC
  • Input voltage range: 90 to 264V AC
  • Input rated frequency: 50/60Hz
  • Input frequency range: 47 to 63Hz
  • Input current: 0.35A maximum
  • Input inrush current: 30A maximum
  • Rated output voltage and current: 3.0 to 30V and 0.1 to 2.0A
  • Output power: 7.5W maximum
  • Output line regulation: ±1%
  • Output load regulation: ±5%
  • Output over shoot: 10% maximum
  • Output ripple and noise: 100mVp-p maximum
  • Output rising time: 20ms maximum at 115V AC
  • Output hold-up time: 10ms minimum at 230V AC
  • No load power consumption: 0.3W maximum at 115/230V AC
  • Efficiency: confirm to level V (CEC/ERP/MEPS)
  • Protection: OCP, OVP, OTP, OLP
  • Dielectric withstand voltage: 3KV, 5mA, 60s
  • Leakage current: 0.25mA at 230V AC
  • DC plug specification according to customer's requirements
  • Operating temperature range: 0 to 40°C
  • Storage temperature range: -10 to 70°C
