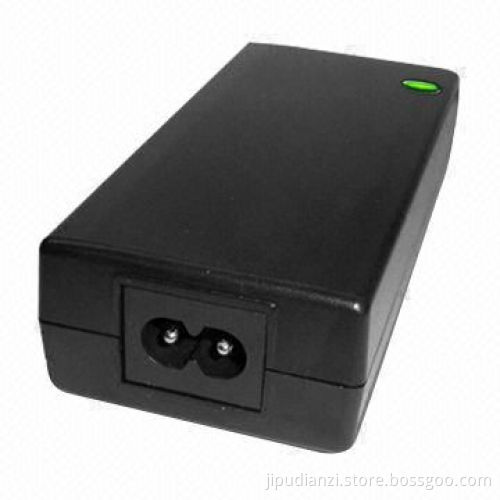

Hottest Mode AC/DC 12V-24V Power Adapter with FCC, CUI and CE in Shenzhen

Hottest Mode AC/DC 12V-24V Power Adapter with FCC, CUI and CE in Shenzhen

Get Latest Price

Payment Type:: T/T or Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T or Western Union

Product Description

Conditions: 100 to 240V AC, 50/60Hz

Input rated voltages: 100 to 240V AC

Input voltage range: 90 to 264V AC

Input rated frequency: 50/60Hz

Input frequency range: 47 to 63Hz

Input current: 0.35A maximum

Input inrush current: 30A maximum

Rated output voltage and current: 3.0 to 30V and 0.1 to 2.0A

Output power: 7.5W maximum

Output line regulation: ±1%Output load regulation: ±5%

Output over shoot: 10% maximum

Output ripple and noise: 100mVp-p maximum

Output rising time: 20ms maximum at 115V AC

Output hold-up time: 10ms minimum at 230V AC

No load power consumption: 0.3W maximum at 115/230V AC

Efficiency: confirm to level V (CEC/ERP/MEPS)

Protection: OCP, OVP, OTP, OLP

Dielectric withstand voltage: 3KV, 5mA, 60s

Leakage current: 0.25mA at 230V AC

DC plug specification according to customer's requirements

Operating temperature range: 0 to 40°C

Storage temperature range: -10 to 70°C

With FCC, ROHS and CE approvals

Shenzhen Jipu electronic CO.LTD is a professional manufacturer of power adapter supply, has the sales agency of independent research and production and has its own SMT dust-free workshop

Our company's products have various specifications and beautiful appearance

Accordance with the safety standard design and product in strict:

IEC950, 60335, 61558, 61558, UL60950 EN60335, 1310, 1012 and fully meet (PSE) UL, FCC, CE, SAA, TUV, GS, KC certifications
