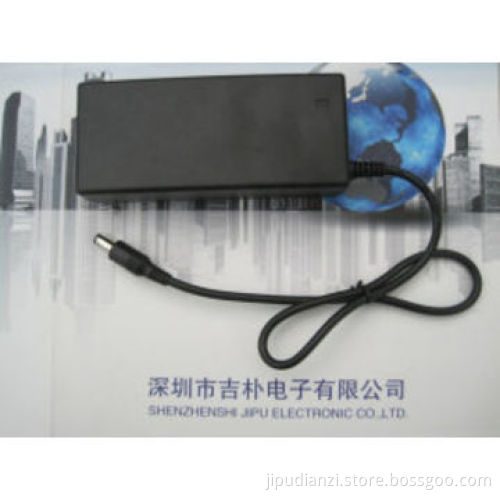

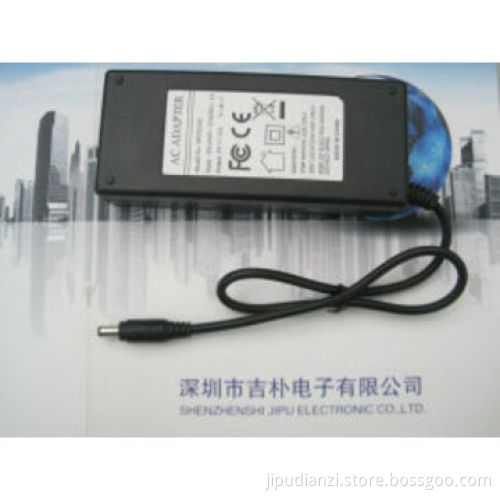

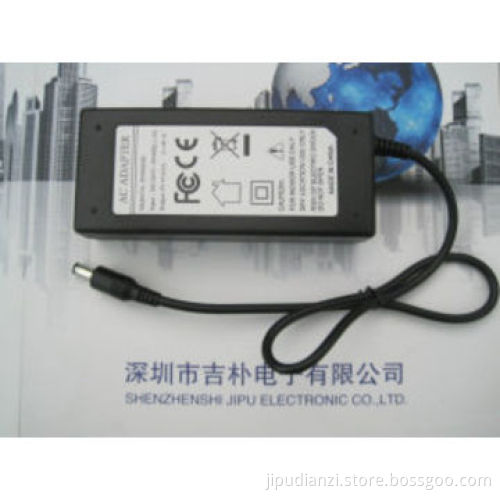

Desktop DC/AC Power Adapter, Input of 100-240V AC, 50-60Hz

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T or Western Union

Product Description

Features:

Electrical characteristics:

Protection:

Safety and burn-in safety standards:

Life average/expectancy: 3 years

EMI conductor and radiation: GB 9254-1998, EN 55022, EN 55024 and FCC

Incoming current 1.0A(maximum)100/240V AC

Inrush current: at 100V AC 30A maximum at 240V AC 60A maximum

Leakage current: 0.25mA maximum

Export

Over-voltage protection

Over-current protection: 110-200% rated load

Automatic recovery

Short-circuit protection

Operating temperatures: 0-40°C

Storage temperatures: -20-60°C

Under the condition of the enrichment, humidity 5-95%

Applicable to mobile phone, IT, T-LINK, ADSL and smart home appliances

Meets all related safety standard

Ultra low no-load/standby power consumption (30mW maximum)

Output voltage range: 5 to 24V

Current range: 1A

Ripple and noise: 100 to 200mV (maximum)

Voltage range: ±5%

Input voltage range: 100 to 240V (90 to 264V)

Frequency range: 50 to 60Hz (47 to 63Hz)

Efficiency (type): 69.53% (minimum)

Over-current

Short-circuit

Over-temperature

Over-voltage

GB 4943/EN 60950-1/UL 60950

Burn-in 80 to 100% load and 40 ±5°C, 4 hours
