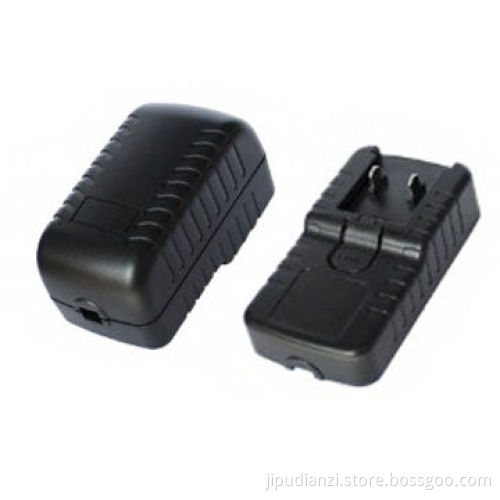

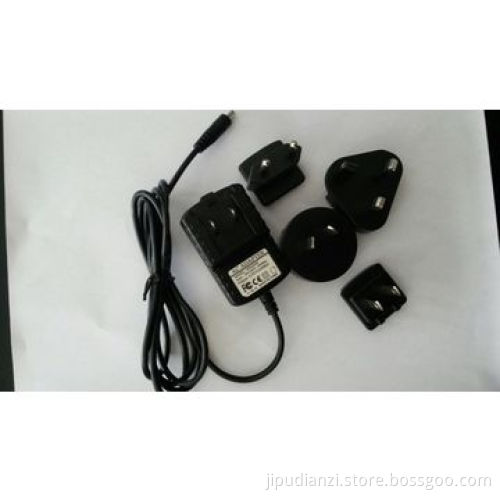

Hot sell multi-angle conversion pin power adapter for audio video products

Hot sell multi-angle conversion pin power adapter for audio video products

Get Latest Price

Payment Type:: T/T or Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T or Western Union

Product Description

Features:

Low price and high reliability
AC input power suitable for the world
High efficiency and low operation temperature
Soft-start current can reduce the AC input impact effectively
With short-circuit and overload protection
Compact size, light weight
Over 100% full-load burn-in test

Specifications:

Multi-angle conversion pin power adapter overvoltage protection, over current protection: greater than 130-200% rated load
3-15V DC Hot sell multi-angle conversion pin power adapter for audio video
Application:
- STB (set top box)
- Shifting unit
- IP camera (Internet protocol camera)
- Sales terminals
- Audio video products
- ADSL interchanger
Output
- Voltage: 3-15V DC
- Current: 0-2.1A
- Power: 15VA
Overvoltage protection:
- Over current protection: greater than 130-200% rated load, automatic recovery after lifting
- Short circuit protection: automatic recovery after lifting
Working temperatures: 0-40°C
Use humidity 10-80% RH
Storage temperatures: -20-80°C
Product certification: CB, GS, CE, SAA, ERP, RoHS
Input:
- Input voltage: 90-264V AC
- Frequencies: 47-50/60~63Hz
- Incoming current: 0.3A (max.) 100/240V AC
Inrush current:
- 100V AC full load, max. 50A
- 240V AC full load, max. 60A
- Leakage current: Max 0.25mA
Inrush current:
- 100V AC full Load, max. 50A
- 240V AC full load, max. 60A
- Leakage current: Max. 0.25mA
Approval standards: IEC/EN 60950-1, EN 55022-1

Our service:

Can print your logo on products
Can manufacture these products on any pantone color that you requested
Can supply these products with spray painting
Can manufacture your customized package
Can exchange good freely if damage in 12 months
Free sample will be sent to you

Low price and high reliability

AC input power suitable for the world

High efficiency and low operation temperature

Soft-start current can reduce the AC input impact effectively

With short-circuit and overload protection

Compact size, light weight

Over 100% full-load burn-in test

Multi-angle conversion pin power adapter overvoltage protection, over current protection: greater than 130-200% rated load

3-15V DC Hot sell multi-angle conversion pin power adapter for audio video

Application:

STB (set top box)
Shifting unit
IP camera (Internet protocol camera)
Sales terminals
Audio video products
ADSL interchanger

Output

Voltage: 3-15V DC
Current: 0-2.1A
Power: 15VA

Overvoltage protection:

Over current protection: greater than 130-200% rated load, automatic recovery after lifting
Short circuit protection: automatic recovery after lifting

Working temperatures: 0-40°C

Use humidity 10-80% RH

Storage temperatures: -20-80°C

Product certification: CB, GS, CE, SAA, ERP, RoHS

Input:

Input voltage: 90-264V AC
Frequencies: 47-50/60~63Hz
Incoming current: 0.3A (max.) 100/240V AC

Inrush current:

100V AC full load, max. 50A
240V AC full load, max. 60A
Leakage current: Max 0.25mA

Inrush current:

100V AC full Load, max. 50A
240V AC full load, max. 60A
Leakage current: Max. 0.25mA

Approval standards: IEC/EN 60950-1, EN 55022-1

STB (set top box)

Shifting unit

IP camera (Internet protocol camera)

Sales terminals

Audio video products

ADSL interchanger

Voltage: 3-15V DC

Current: 0-2.1A

Power: 15VA

Over current protection: greater than 130-200% rated load, automatic recovery after lifting

Short circuit protection: automatic recovery after lifting

Input voltage: 90-264V AC

Frequencies: 47-50/60~63Hz

Incoming current: 0.3A (max.) 100/240V AC

100V AC full load, max. 50A

240V AC full load, max. 60A

Leakage current: Max 0.25mA

100V AC full Load, max. 50A

240V AC full load, max. 60A

Leakage current: Max. 0.25mA

Can print your logo on products

Can manufacture these products on any pantone color that you requested

Can supply these products with spray painting

Can manufacture your customized package

Can exchange good freely if damage in 12 months

Free sample will be sent to you
