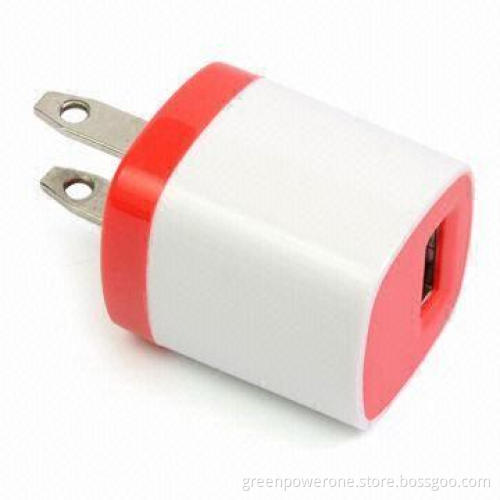

5V 1A Charger for iPhone

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Charger for iPhone

Output:

Voltage: DC 5V

Rated current: 500 to 1000mA

Maximum power: 6W

Ripple (maximum): 1% type voltage

Voltage tolerance: 5%

Input:

Voltage range: 90 to 264V AC

Frequency range: 47 to 63Hz

AC current: 0.3A/115V AC, 0.21A/230V AC

Leakage current:

Maximum: cold start, 30A/115V AC, 50A/230V AC

Maximum: 0.25mA/240V AC

Protection:

Over load: more then 105%, rated output power, protection type:hiccup mode, recovers automatically after fault condition isremoved

Over voltage: 120 to 160%, protection type: clamp by internalcircuit

Over temperature: 140°C typically, protection type:shutdown O/P voltage, recovers automatically after temperature goesdown

Environment:

Working temperature: 0 to 45°C

Working humidity: 20 to 90% RH non-condensing

Storage temperature/humidity: -20 to 85°C, 10 to 95%RH

Temperature coefficient: +0.03% degree centigrade (0 to45°C)

Vibration: 10 to 500Hz, 2g 10min/1 cycle, period for 60min eachalong x, y, z axes

EMI conduction and radiation: compliance to FCC part15 class b,EN55022, EN61204-3 class b

Harmonic current: compliance to EN61000-3-2, 3

EMS immunity: compliance to EN61000-4-2, 3, 4, 5000-4-2, 3, 4,5
