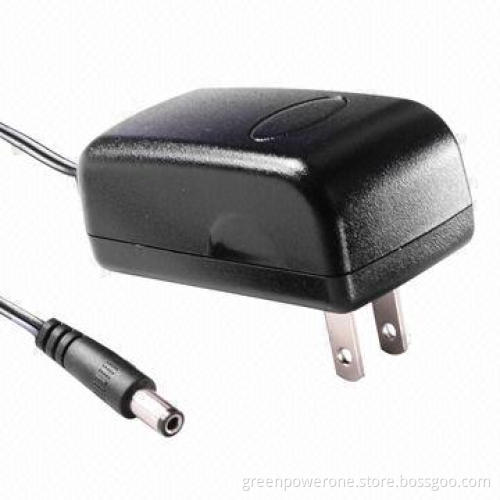

12V/2A Switching Power Adapter, UL/cUL Mark, 90 to 264V AC Voltage Range

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Specifications:

Certificates: UL, cUL, FCC, CCC, PSE, SAA, CE, TUV-GS andBS
Meet efficiency level: V
Output:
- Voltage: 7-36 V DC
- Rated current: 0.2-3 Amps
- Maximum power: 25W
- Ripple (maximum): 1% type voltage
- Voltage tolerance: 5%
Input:
- Voltage range: 90 to 264V AC
- Frequency range: 47 to 63Hz
- AC current: 0.3A/115V, 0.21A/230V AC
- Leakage current (maximum): cold start, 30A/115, 50A/230VAC
- Leakage current (maximum): 0.25mA/240V AC
Protection:
- Overload: more then 105%, rated output power (protection type:Hiccup mode, recovers automatically after fault condition isremoved)
- Over-voltage: 120 to 160% (protection type: clamp by internalcircuit)
- Over-temperature: 140°C typically (protection type:shutdown O/P voltage, recovers automatically after temperature goesdown)
Environment:
- Working temperature: 0 to 45°C
- Working humidity: 20 to 90% RH (non-condensing)
- Storage temperature, humidity: -20 to 85°C, 10 to 95%RH
- Temperature coefficient: 0.03% °C (0--45°C)

Certificates: UL, cUL, FCC, CCC, PSE, SAA, CE, TUV-GS andBS

Meet efficiency level: V

Output:

Input:

Protection:

Overload: more then 105%, rated output power (protection type:Hiccup mode, recovers automatically after fault condition isremoved)
Over-voltage: 120 to 160% (protection type: clamp by internalcircuit)
Over-temperature: 140°C typically (protection type:shutdown O/P voltage, recovers automatically after temperature goesdown)

Environment:
