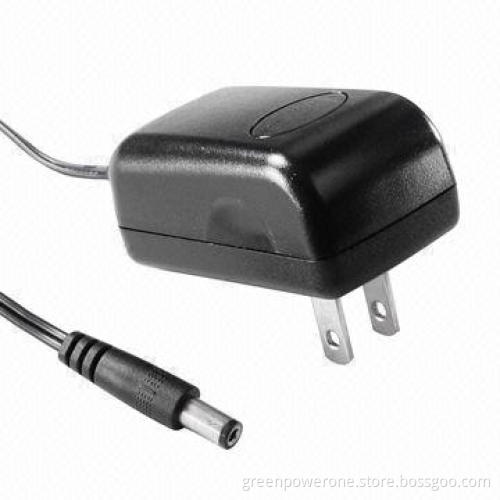

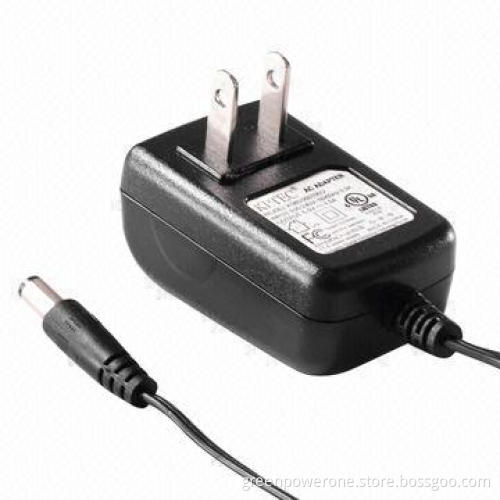

12V/0.5A Switching Power Adapter with UL Mark, 3-36V DC Voltage

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Specifications:

Certificates: UL, cUL, FCC, CCC, PSE, SAA, CE, TUV-GS andBS
Meet efficiency level: V
Output:
- Voltage: 3-36 V DC
- Rated current: 0.5-1.2 Amps
- Maximum power: 6W
- Ripple (maximum): 1% type voltage
- Voltage tolerance: 5%
Input:
- Voltage range: 90 to 264V AC
- Frequency range: 47 to 63Hz
- AC current: 0.3A/115, 0.21A/230V AC
- Leakage current (maximum): cold start, 30A/115, 50A/230VAC
- Leakage current (maximum): 0.25mA/240V AC
Protection:
- Overload: more then 105%, rated output power (protection type:hiccup mode, recovers automatically after fault condition isremoved)
- Over-voltage: 120 to 160% (protection type: clamp by internalcircuit)
- Over-temperature: 140°C typically (protection type:shutdown O/P voltage, recovers automatically after temperature goesdown)
- Vibration: 10 to 500Hz, 2G 10 minute/1 cycle, period for 60minutes each along X, Y and Z axes

Safety and EMC:

Safety standards: GB8898, GB4943, EN/IEC/UL60950,EN/IEC/UL60065
Withstand voltage: I/P-O/P: 3kV AC
Isolation resistance: I/P-O/P: 100m©/500V DC/25°C/70%RH
EMI conduction and radiation: compliance to FCC part15 class B,EN55022, EN61204-3 class B
Harmonic current: compliance to EN61000-3-2, 3
EMS immunity: compliance to EN61000-4-2, 3, 4, 5,000-4-2, 3, 4,5

Certificates: UL, cUL, FCC, CCC, PSE, SAA, CE, TUV-GS andBS

Meet efficiency level: V

Output:

Input:

Protection:

Overload: more then 105%, rated output power (protection type:hiccup mode, recovers automatically after fault condition isremoved)
Over-voltage: 120 to 160% (protection type: clamp by internalcircuit)
Over-temperature: 140°C typically (protection type:shutdown O/P voltage, recovers automatically after temperature goesdown)
Vibration: 10 to 500Hz, 2G 10 minute/1 cycle, period for 60minutes each along X, Y and Z axes

Voltage: 3-36 V DC

Rated current: 0.5-1.2 Amps

Maximum power: 6W

Ripple (maximum): 1% type voltage

Voltage tolerance: 5%

Voltage range: 90 to 264V AC

Frequency range: 47 to 63Hz

AC current: 0.3A/115, 0.21A/230V AC

Leakage current (maximum): cold start, 30A/115, 50A/230VAC

Leakage current (maximum): 0.25mA/240V AC

Overload: more then 105%, rated output power (protection type:hiccup mode, recovers automatically after fault condition isremoved)

Over-voltage: 120 to 160% (protection type: clamp by internalcircuit)
