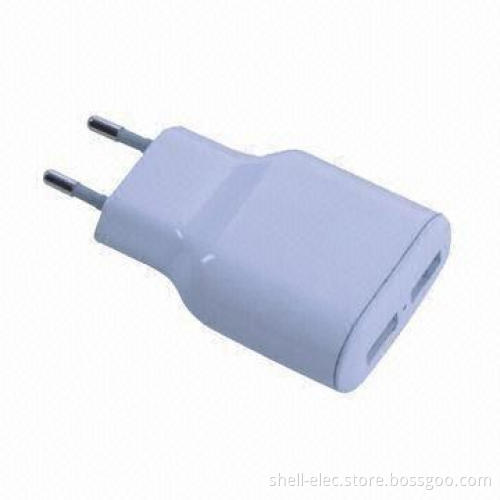

Dual USB Travel Charger for Mobile Phones, Digital Cameras and PDA, with 5V Output Voltage

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	30% Deposit, 70% T/T Before Shipment

Product Description

Input voltage: 100 to 240V AC

Input current: 0.15A (maximum)

Input frequency: 50 to 60Hz

Output voltage: 5V DC

Output current: 2 x 500mA or 1 x 1,000mA/2 x 1,000mA or 1 x2,100mA

No-load power consumption: 0.03W (maximum)

Efficiency: 60% (minimum)

Ripple and noise: 100 to 200mV

Counter current: 5mA (maximum)

Line regulation: ±1%

Load regulation: ±5%

Switching adapter, fixed frequency control circuit, apply tomobile phones, PDAs, digital cameras, tax-control POS, routers andmore

Meets all related safety standards

Output protections:

Short-circuit protection

Over-voltage protection

Over-current protection

Reliability:

Insulation resistance: 7mΩ (minimum)

Leakage current: 0.25mA (maximum)

Operating temperature: -5 to 45°C

Storage temperature: -20 to 85°C

Storage humidity: 5 to 95% RH

Burn-in test: 80 to 100% load, 40 ± 5, four hours

Operating indication: single-color or dual-color

With CB, CE-EMC/LVD, EUP and RoHS marks

Dimensions: 68 x 48 x 24mm

Weight: 53g

Packaging: polybag, blister, card or colored box
