High-selectivity 4.5MHz-6.74MHz Ceramic Filter for TV/VCR Stage

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T or COD

Product Description

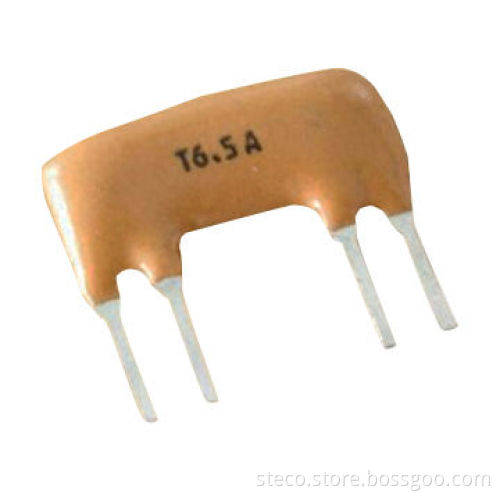

LTT4.5/5.5/6.0/6.5MA ceramic filter for TV/VCR stage

500pcs/bag

Part number LTT4.5MA:

Part number LTT5.5MA:

Part number LTT6.0MA:

Part number LTT6.5MA:

Center frequency (Fo): 4.5MHz

3 dB bandwidth: 40KHz min

Insertion loss: 10 dB max

20 dB bandwidth: 370KHz max

Spurious response: (within 4.5 + 0.8/_1.0MHz) 40dB min

Input/output impedance: 1,000 Ohm

Center frequency (Fo): 5.5MHz

3 dB bandwidth: 50KHz min

Insertion loss: 9 dB max

20 dB bandwidth: 350KHz max

Spurious response: (within 5.5 + 1.0/-1.0MHz) 50dB min.

Input/output impedance: 600 Ohm

Center frequency (Fo): 6.0MHz

3 dB bandwidth: 50KHz min

Insertion loss: 9 dB max

20 dB bandwidth: 400KHz max

Spurious response: (within 6.0+1.0/-1.0MHz) 50dB min

Input/output impedance: 470 Ohm

Center frequency (Fo): 6.5MHz

3 dB bandwidth: 50KHz min

Insertion loss: 6 dB max

20 dB bandwidth: 400KHz max

Spurious response: (within 6.5+1.0MHz) 50dB min

(within 6.5_1.0MHz) 50dB min

Input/output impedance: 470 Ohm
