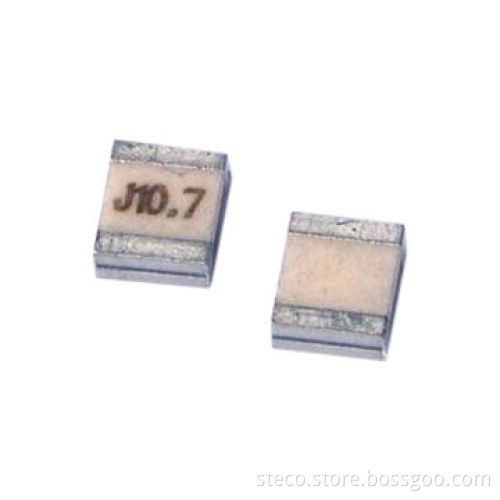

SMD Ceramic Discriminator Series for FM with 10.7MHz Frequency
  • SMD Ceramic Discriminator Series for FM with 10.7MHz Frequency
SMD Ceramic Discriminator Series for FM with 10.7MHz Frequency

SMD Ceramic Discriminator Series for FM with 10.7MHz Frequency

Get Latest Price
Payment Type:
T/T or COD
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T or COD
Product Description
Product Description
  • JTCV10.7MG/MC SMD ceramic discriminator for FM
  • 1,000 pieces/reel
  • JTCV10.7MG3:
    • Center frequency: 10.7M ±120KHz (5 ranks)
    • Minimum recovered audio voltage at Fo: 650mV
    • Maximum distortion at Fo: 1.0%
    • Demodulation 3dB BW: 150KHz min
    • Applicable IC: TA7303P, LA1150, PC1028H and TA7130P
  • JTCV10.7MG16:
    • Center frequency: 10.7M ±120KHz (5 ranks)
    • Minimum recovered audio voltage at Fo: 60mV
    • Maximum distortion at Fo: 0.9%
    • Minimum demodulation 3dB BW: 300kHz
    • Applicable IC: TA8122AN
  • JTCV10.7MG18:
    • Center frequency: 10.7M ±120kHz (5 ranks)
    • Minimum recovered audio voltage at Fo: 60mV
    • Maximum distortion at Fo: 0.9%
    • Minimum demodulation 3dB BW: 300kHz
    • Applicable IC: TA8132AN
  • JTCV10.7MC31:
    • Center frequency: 10.7M ±120KHz (5 ranks)
    • Minimum recovered audio voltage at Fo: 50mV
    • Maximum distortion at Fo: 1.0%
    • Minimum demodulation 3dB BW: 300kHz
    • Applicable IC: TA2003AN
  • JTCV10.7MC1:
    • Center frequency: 10.7M ±120KHz (5 ranks)
    • Minimum recovered audio voltage at Fo: 35mV
    • Maximum distortion at Fo: 1.0%
    • Minimum demodulation 3dB BW: 242kHz
    • Applicable IC: CXA1019M and CX-20111
  • Center frequency: 10.7M ±120KHz (5 ranks)
  • Minimum recovered audio voltage at Fo: 650mV
  • Maximum distortion at Fo: 1.0%
  • Demodulation 3dB BW: 150KHz min
  • Applicable IC: TA7303P, LA1150, PC1028H and TA7130P
  • Center frequency: 10.7M ±120KHz (5 ranks)
  • Minimum recovered audio voltage at Fo: 60mV
  • Maximum distortion at Fo: 0.9%
  • Minimum demodulation 3dB BW: 300kHz
  • Applicable IC: TA8122AN
  • Center frequency: 10.7M ±120kHz (5 ranks)
  • Minimum recovered audio voltage at Fo: 60mV
  • Maximum distortion at Fo: 0.9%
  • Minimum demodulation 3dB BW: 300kHz
  • Applicable IC: TA8132AN
  • Center frequency: 10.7M ±120KHz (5 ranks)
  • Minimum recovered audio voltage at Fo: 50mV
  • Maximum distortion at Fo: 1.0%
  • Minimum demodulation 3dB BW: 300kHz
  • Applicable IC: TA2003AN
  • Center frequency: 10.7M ±120KHz (5 ranks)
  • Minimum recovered audio voltage at Fo: 35mV
  • Maximum distortion at Fo: 1.0%
  • Minimum demodulation 3dB BW: 242kHz
  • Applicable IC: CXA1019M and CX-20111
