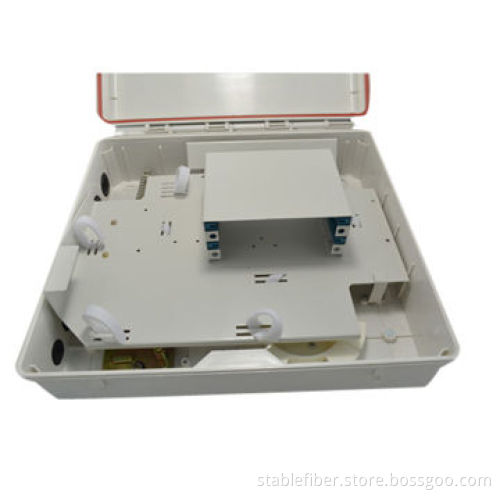

FTTH distribution box, suitable for splitters

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Mainly used in FTTH projects, with function of mechanical splice and cable distribution

Can protect and manage cable effectively

Features:

Fully closed structure, simple and nice shape

Adopts material, nice property of dust-proof and waterproof and moisture-proof

Suitable for splitters

Flexible splice tray which is convenient for operation and maintaining

Wall and pole mountable

Suitable for both indoor and outdoor

Technical characters:

Working temperature: -40 to +85°C
Relative humidity: ≤85% (+30°C)
Atmospheric pressure: 70-106kpa
Insert loss: ≤0.2dB
UPC return loss: ≥50dB
APC return loss: ≥60dB
Insert and pull out life: ≥1000 times
Grounding device is insulated with termination box, IR≥1000M Ω/500V (direct current)
Between grounding device and box body, withstand voltage is over 3000V/min, no breakdown and flashover
U: ≥3000V (direct current)

Working temperature: -40 to +85°C

Relative humidity: ≤85% (+30°C)

Atmospheric pressure: 70-106kpa

Insert loss: ≤0.2dB

UPC return loss: ≥50dB

APC return loss: ≥60dB

Insert and pull out life: ≥1000 times

Grounding device is insulated with termination box, IR≥1000M Ω/500V (direct current)

Between grounding device and box body, withstand voltage is over 3000V/min, no breakdown and flashover

U: ≥3000V (direct current)
