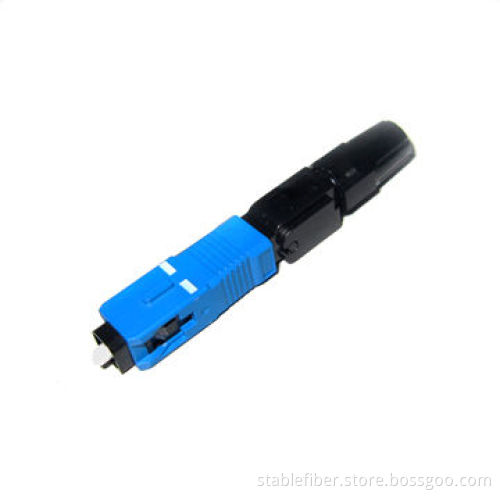

SC fast connector, >30N tensile strength

Get Latest Price

Payment Type:: Telegraphic Transfer (TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Field installable

Compatible with standard SC connector

Makes field installation easy and fast without epoxy curing, special tool and hand polishing at work site with its proven precision fiber alignment mechanical splice technology

Applicable for 3.1x2.0mm drop cable

Optical fiber diameter: 125μm (657A and 657B)

Tight buffer diameter: 250μm

Operating time: about 100s (no fiber cut)

Insertion loss: ≤0.5dB (1310 and 1550nm)

Return loss: ≤-40dB

Fastening strength of naked fiber: >5N

Fastening strength of naked fiber holder: >10N

Tensile strength: >30N

Using temperature: -40 to +75°C

Online tensile strength (20N):

IL: ≤0.2dB
RL: ≤5dB

Mechanical durability (500 times):

IL: ≤0.2dB
RL: ≤5dB

Drop-off test (drop-off height 4m, once per direction, totally 3 times):

IL: ≤0.2dB
RL: ≤5dB

IL: ≤0.2dB

RL: ≤5dB

IL: ≤0.2dB

RL: ≤5dB

IL: ≤0.2dB

RL: ≤5dB
