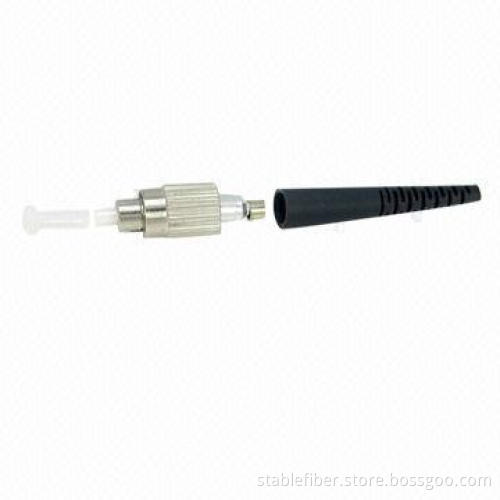

FC Fiber-optic Connector with Ultra-low Back Reflection and Corrosion-resistant Body

Get Latest Price

Payment Type:: Telegraphic Transfer (TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Features:

FC connector has zirconia ceramic ferrule (1.25mm outer diameter) with either PC or APC end-face, provides optimum insertion and return loss
FC connector used on small diameter mini-cordage 2.0mm as well as 3.0mm cable
FC connectors available in pre-assembled or kit (un-assembled) formats, features self-adjusting panel latches and choice of mounting orientations with labeled polarity choice of zirconia ceramic or phosphor bronze split sleeve available
Precision mechanical dimensions
1 piece with pre-domed ceramic ferrule designed for easy assembly
Low insertion loss
Ultra-low back reflection
Corrosion-resistant body
Fixed and activity keys can be selected
Ideal for 2.0/2.4/3.0mm jacket or 900μm buffer
Meets Telecordia-GR-326-CORE specifications

Specifications:

Insertion loss:
- SM: 0.20dB
- MM: 0.25dB
Return loss: 55dB (PC)
Fiber compatibility:
- Multiple mode: 62.5/125 or 50/125μm
- Single mode: 9/125μm
Boot size: 2.0, 3.0 or 0.9mm
Connector types: SC, ST, FC, MTRJ, LC, E2000 and MU

Applications:

Telecommunication
CATV
LAN and WAN
Network
Broadband
FTTX

FC connector has zirconia ceramic ferrule (1.25mm outer diameter) with either PC or APC end-face, provides optimum insertion and return loss

FC connector used on small diameter mini-cordage 2.0mm as well as 3.0mm cable

FC connectors available in pre-assembled or kit (un-assembled) formats, features self-adjusting panel latches and choice of mounting orientations with labeled polarity choice of zirconia ceramic or phosphor bronze split sleeve available

Precision mechanical dimensions

1 piece with pre-domed ceramic ferrule designed for easy assembly

Low insertion loss

Ultra-low back reflection

Corrosion-resistant body

Fixed and activity keys can be selected

Ideal for 2.0/2.4/3.0mm jacket or 900μm buffer

Meets Telecordia-GR-326-CORE specifications

Insertion loss:
